kYF26x Optical Zoom Camera/2 megapixel/Network Output/One-button down T26X-NET

Prodution Description:

KYF26X features 26x optical zoom with 3-axis gimbal ，developed for professional industrial applications which support 1080P HD video output with Ethernet port. It adopted to 2/2.8CMOS large image sensor. with effective pixel 2 million, the scene can be clearly presented from hundreds of meters away. And with its 3-axis high-precision stabilization technology, whose accuracy is ±0.001°, it can record stable HD videos without shake, giving you smooth video. It can be connected with UAV through quick-fit/release interface, which can be used in fire protection, forest public security and monitoring, search and rescue, environmental law enforcement and other industries.

Features：

1. Weight 630g

2. 26X optical zoom , view Angle range: 56.94°~2.88°, optical zoom range f: 5~130mm

3. Video resolution: 1080P@25fps, photo resolution: 1920*1080

4. The minimum illuminance in color mode is 0.001Lux/F1.5

5. 3-axis high-precision stabilization technology, the accuracy is ±0.001°

6. Aluminum alloy structure design, light and strong, good heat dissipation performance

7. SD data encryption professional software Settings to prevent the risk of data leakage

8. One key execution, one key down 90° overlooking operation

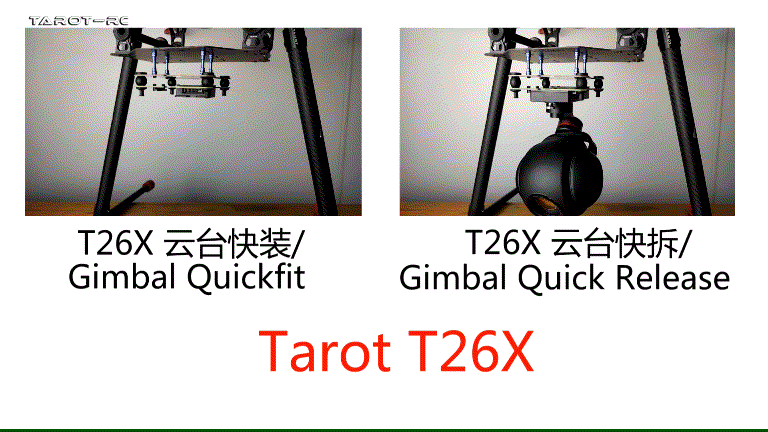

9. It can be connected with UAV through quick-fit/release interface

10. Supprot SBUS and CAN control（TCP not supported）

11.Support windows software and Android real-time display picture (TCP control will be updated follow on )

12.Compatible with most software's screen display (Such as Yunzhuo FPV software, Si Yi FPV software, QGC, Zhidao ground station, Jiyi Ground Station, Han Kun Ground Station, etc.), but also support the playback software with RTSP video streaming function (such as VLC and so on.)

13. Adopt MAVlink2 communication protocol and compatible with Kaiyuan flight control QGC or mission planner to realize image display and video overlay of Kaiyuan flight control coordinates, altitude and other information.

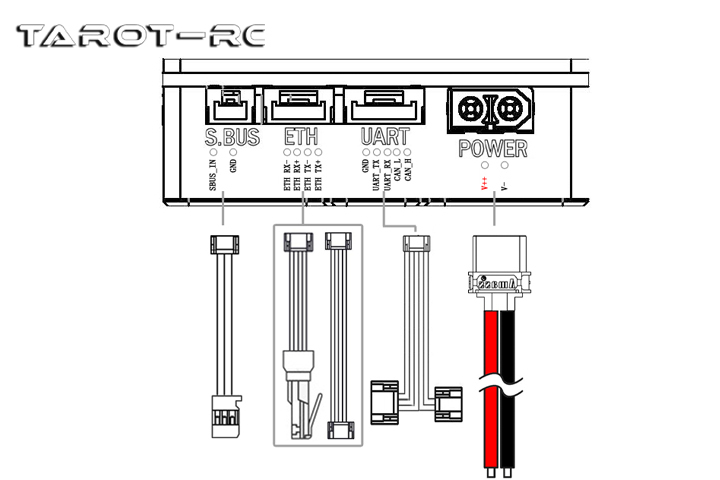

It includes:

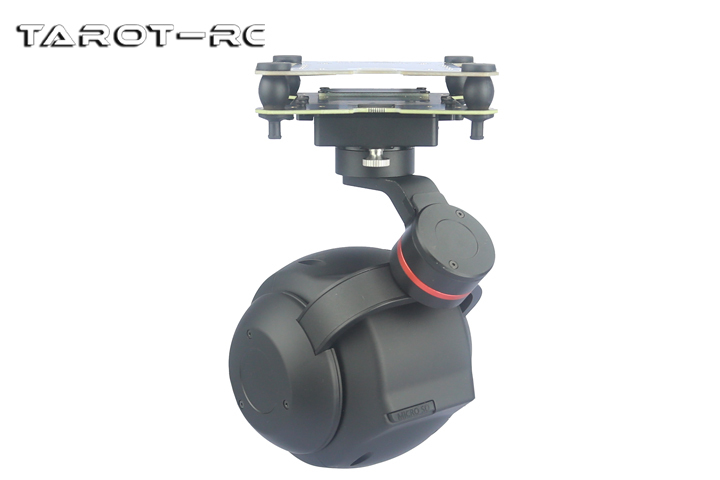

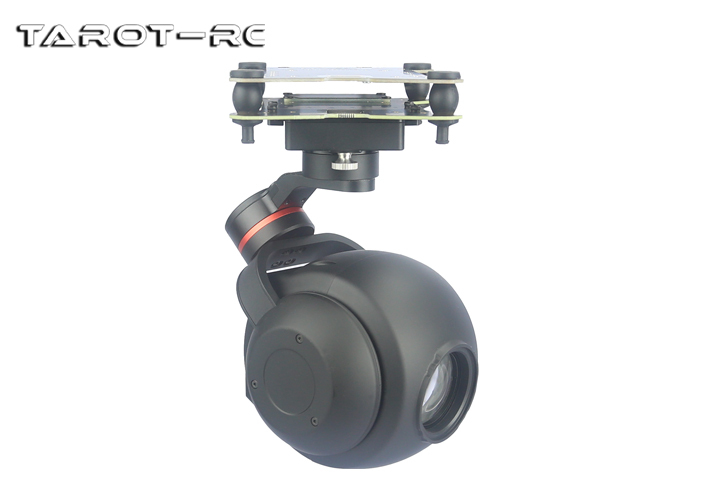

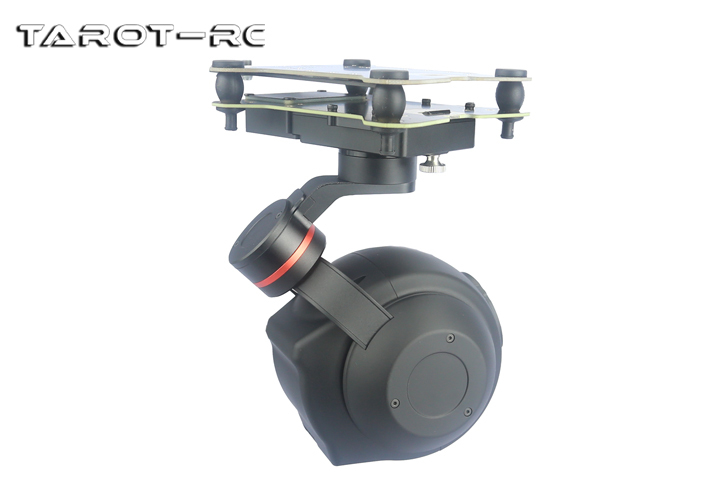

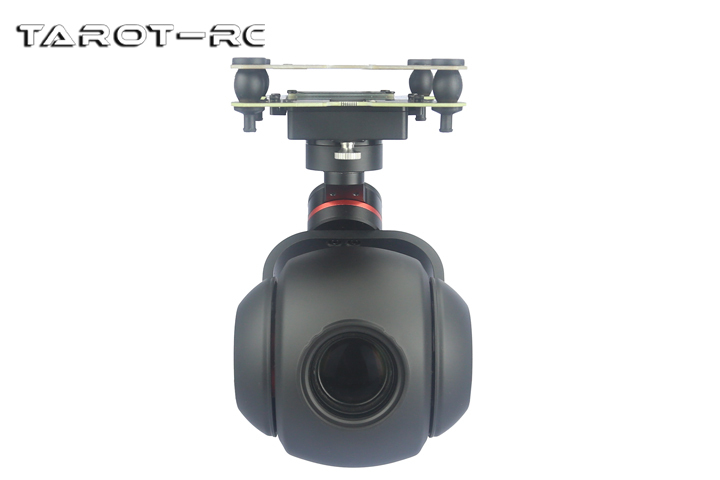

1. KYF 26X optical zoom camera with 3-axis gimbal

2. Network cable 4P/5P X1

3. Can- Serial port adapter X1

4. Gimbal power cord XT30-2P X1

5. SBus receiver connection cable /2PX1

6. Network output and debugging cable /4P-RJ45 X1
