T-MOTOR R100 KV90 Robot motor Low cogging torque&rotor inertia BLDC motor with high quality robotic motor
reviews
Price:
coolflyuavCertification:ce, RoHS
Product Description：
Essential details
Place of Origin:Suzhou, China
- Brand Name:T-MOTOR
- Model Number:R100 KV90
- Usage:BOAT, Car, Electric Bicycle, FAN, Home Appliance, Robot
- Type:Micro Motor

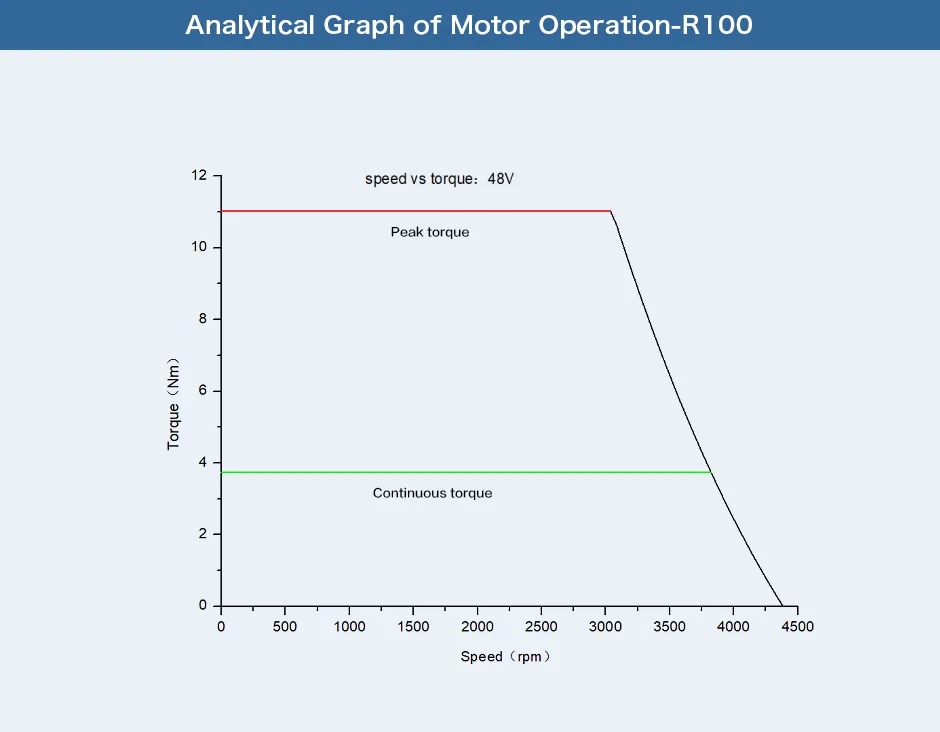

- Torque:see below chat
- Construction:Permanent Magnet
- Commutation:Brushless
- Protect Feature:Explosion-proof
- Speed(RPM):see below chat
- Continuous Current(A):see below

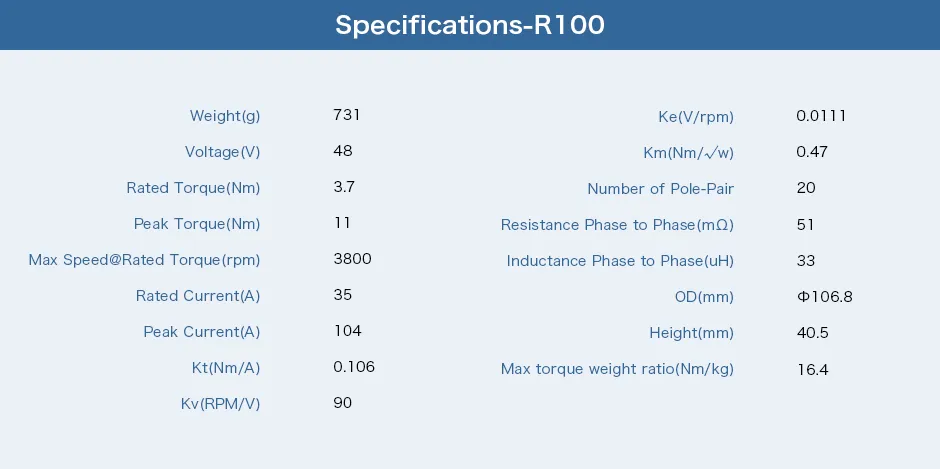

- Weight (g):731g
- Rated Torque (N.m):3.7N.m
- Peak Torque (N.m):11N.m
- Rated Current (A):35A
- Max Current (A):104A
- Pole-Pair:20
- Km (Nm/sqr w):0.47
- Kv(rpm/V):90
- Ke(V/rpm):0.0111
- Kt(Nm/A):0.106
