KYF-250 3.5H long endurance Distance Delivery Drone V tail Fixed wing UAV UAS

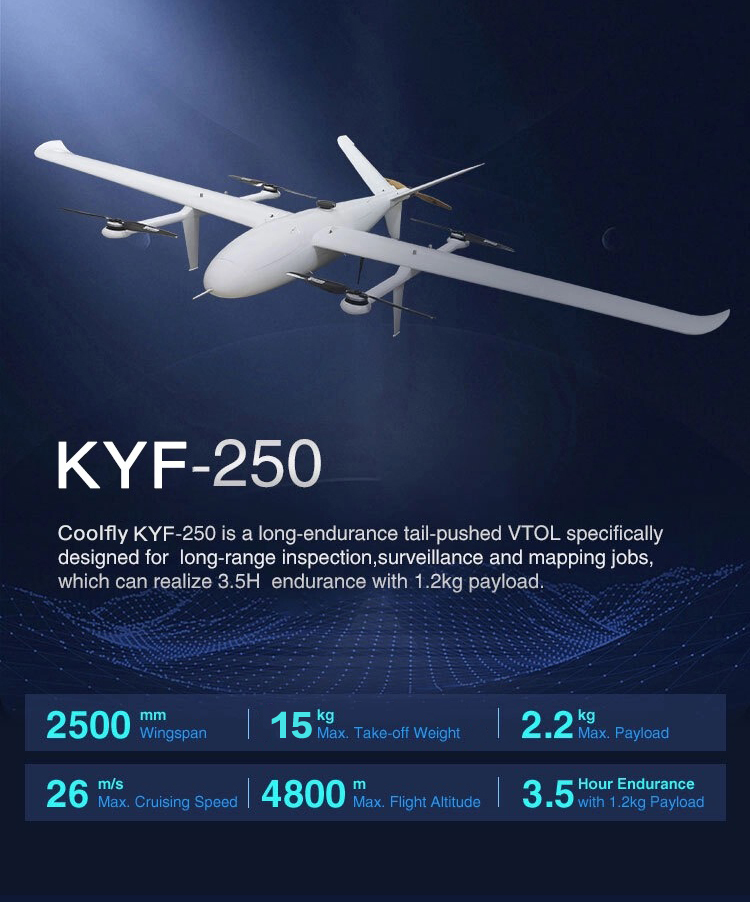

KYF-250 is a long-endurance tail-pushed VTOL with high efficiency specifically designed for long-range inspection, surveillance and mapping jobs, which can realize 3.5H endurance with 1.2kg payload.

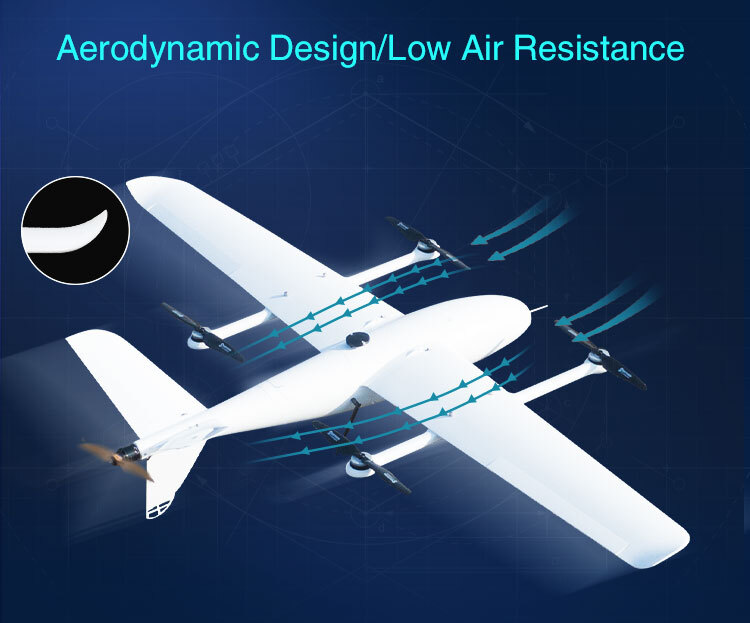

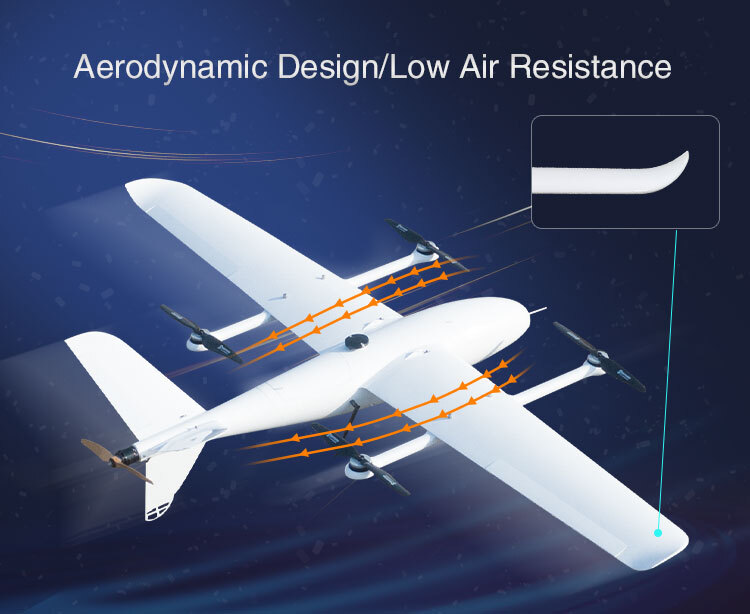

KYF-250 adopts carbon fiber integrated molding process, which makes the whole body light and durable, the aerodynamic design and smooth surface ensure a low air resistance.

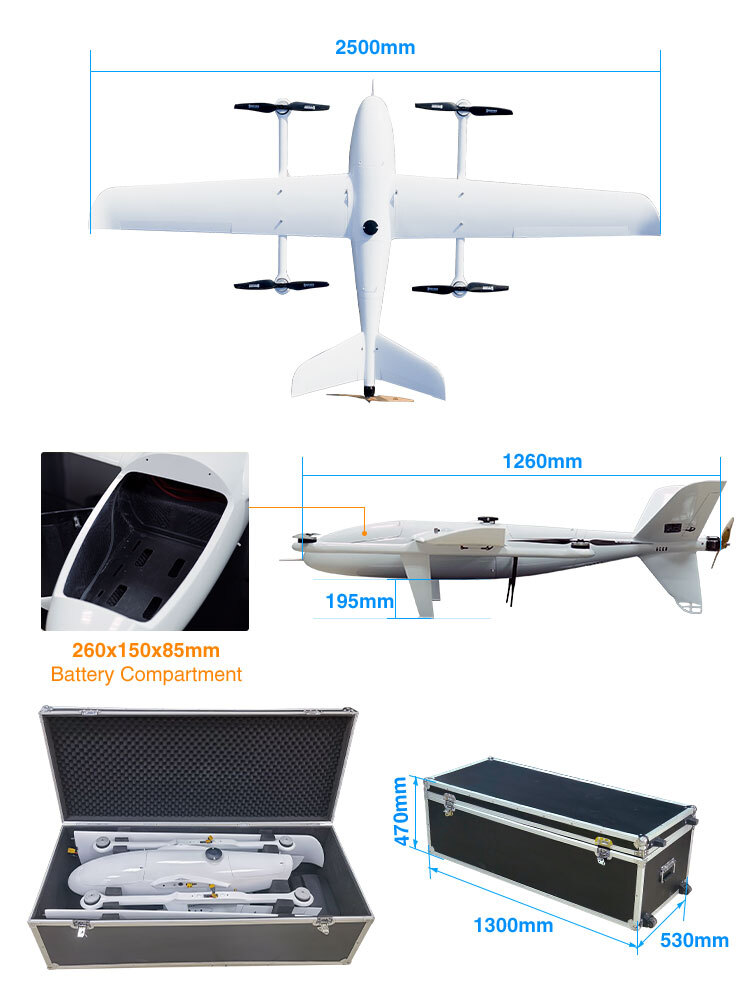

The quick-detach design on both fuselage and cable connector makes it easy to assembly the drone in a short time. In particular, the detachable tail design has the advantages of reducing the volume and convenient transportation. The detachable payload compartment is also convenient for loading different task equipment.

With long duration and stable flight performance KYF-250 VTOL can be applied in inspection and surveillance,mapping and survey by loading different gimbal cameras or mapping cameras, such as 10x/30x zoom cameras, oblique camera and multispectral camera etc.

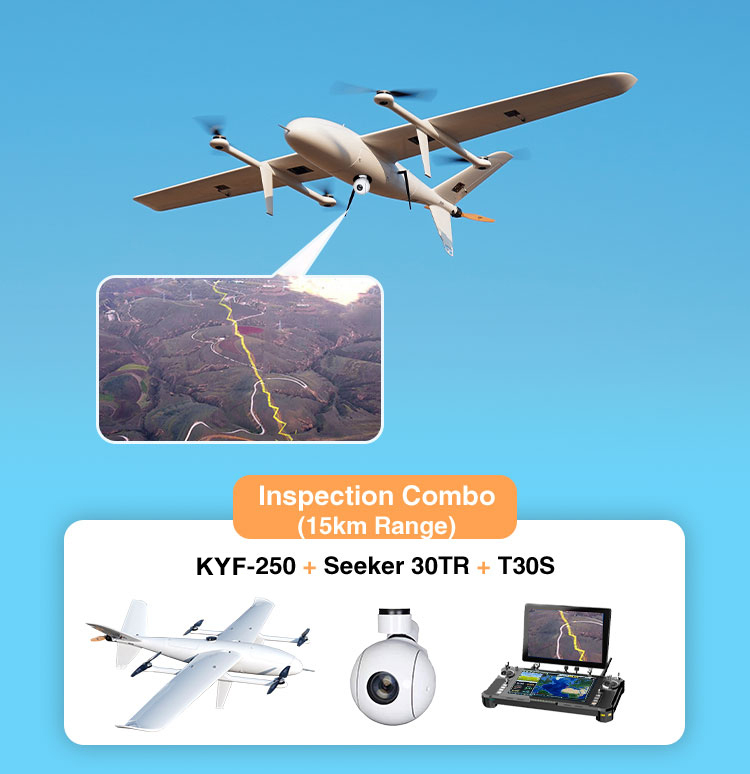

KYF-250 VTOL equipped with 30X zoom camera and T30S dual-screen ground control station featuring 15km rc/data/video transmission range can be used for long range inspection like public security, border defense and energy industries.

Your Purchase Includes:
Pixhawk RTF:
1x KYF-250 VTOL Frame
4x VTOL Motor KV260
4x VTOL ESC 60A
1x Motor KV230 for Fixedwing Mode
1x ESC 115A HV for Fixedwing Mode
2x Pair 17inch Propeller
1x 1712 CW Wooden Propeller
4x Servo
1x Pixhawk Cube Orange Standard Set +with Here 3 GNSS
1x RC16S+ Radio Controller
1x 25A BEC
1x Air Speedometer
1x Carrying Case
1x Assembling,tuned and Flying Test Service

Pixhawk Dual GPS Combo RTF：

1x KYF-250 VTOL Frame
4x VTOL Motor KV260
4x VTOL ESC 60A
1x Motor KV230 for Fixedwing Mode
1x ESC 115A HV for Fixedwing Mode
2x Pair 17inch Propeller
1x 1712 CW Wooden Propeller
4x Servo

1x Pixhawk cube orange Standard Set+

2x CUAV C-RTK 9Ps High Precision Positioning Module

1xRC 16S+Radio Controller

1x 25A BEC
1x Air Speedometer
1x Carrying Case
1x Assembling,tuned and Flying Test Service

Details:
