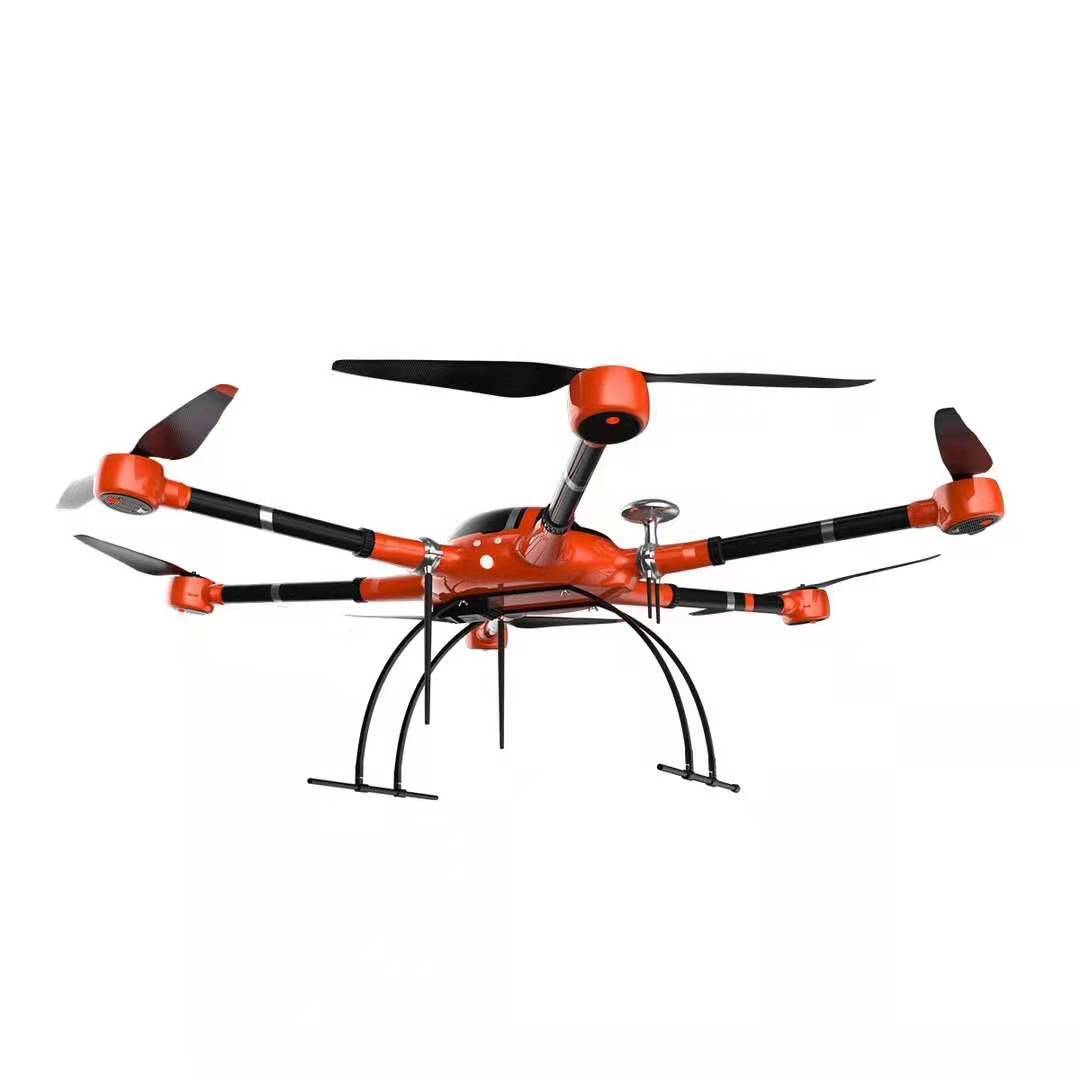

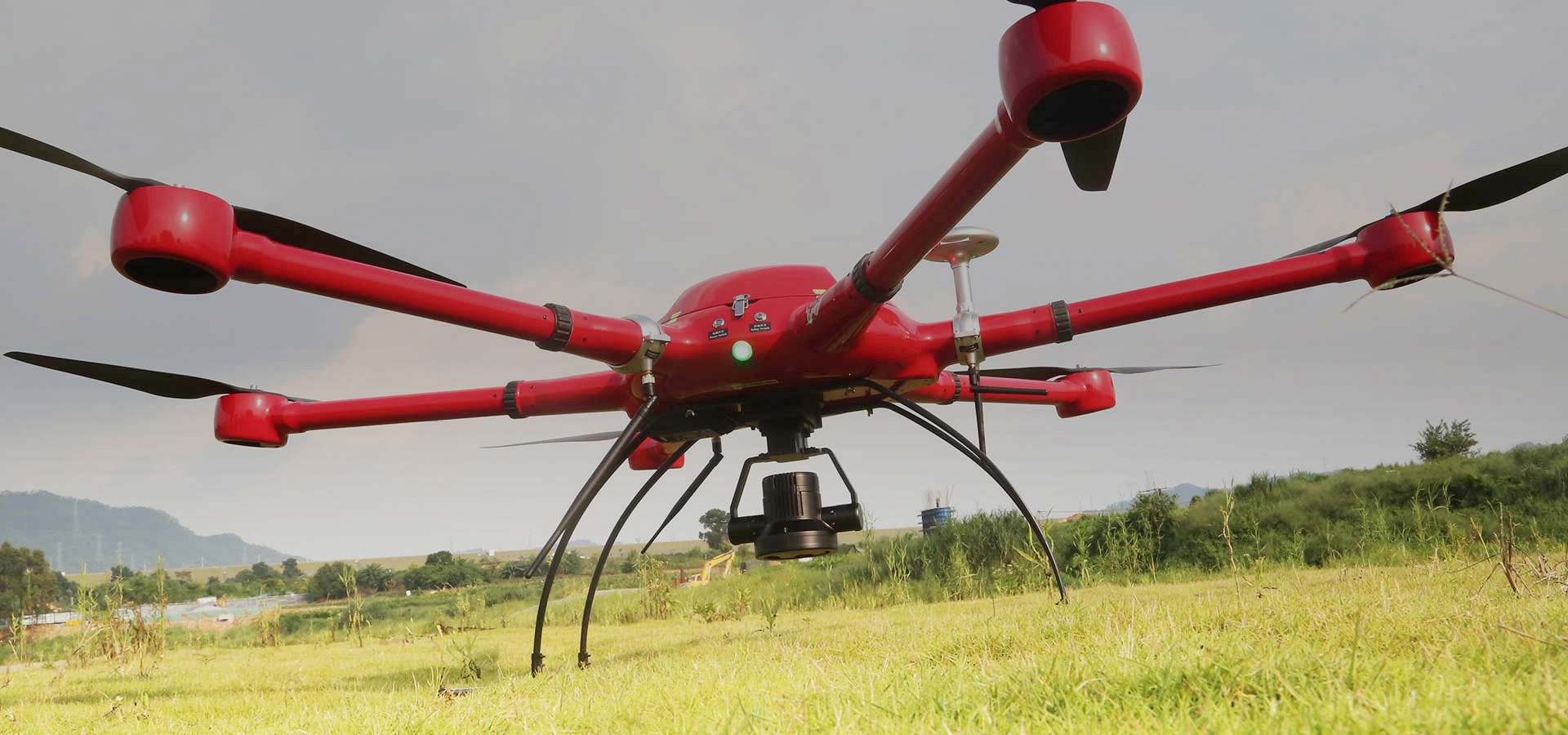

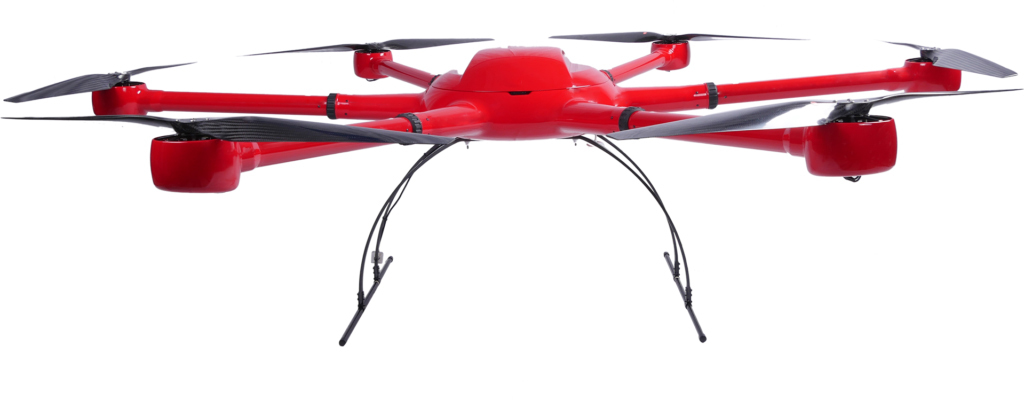

Heavy Lift Drone FD1550 hexacopter for Multi-functional with ranges of max payload to 12KGS Frame KIT

Description:

Heavy Lift Drone FD1550 for Multi-functional with ranges of max payload to 12KGS Frame KIT

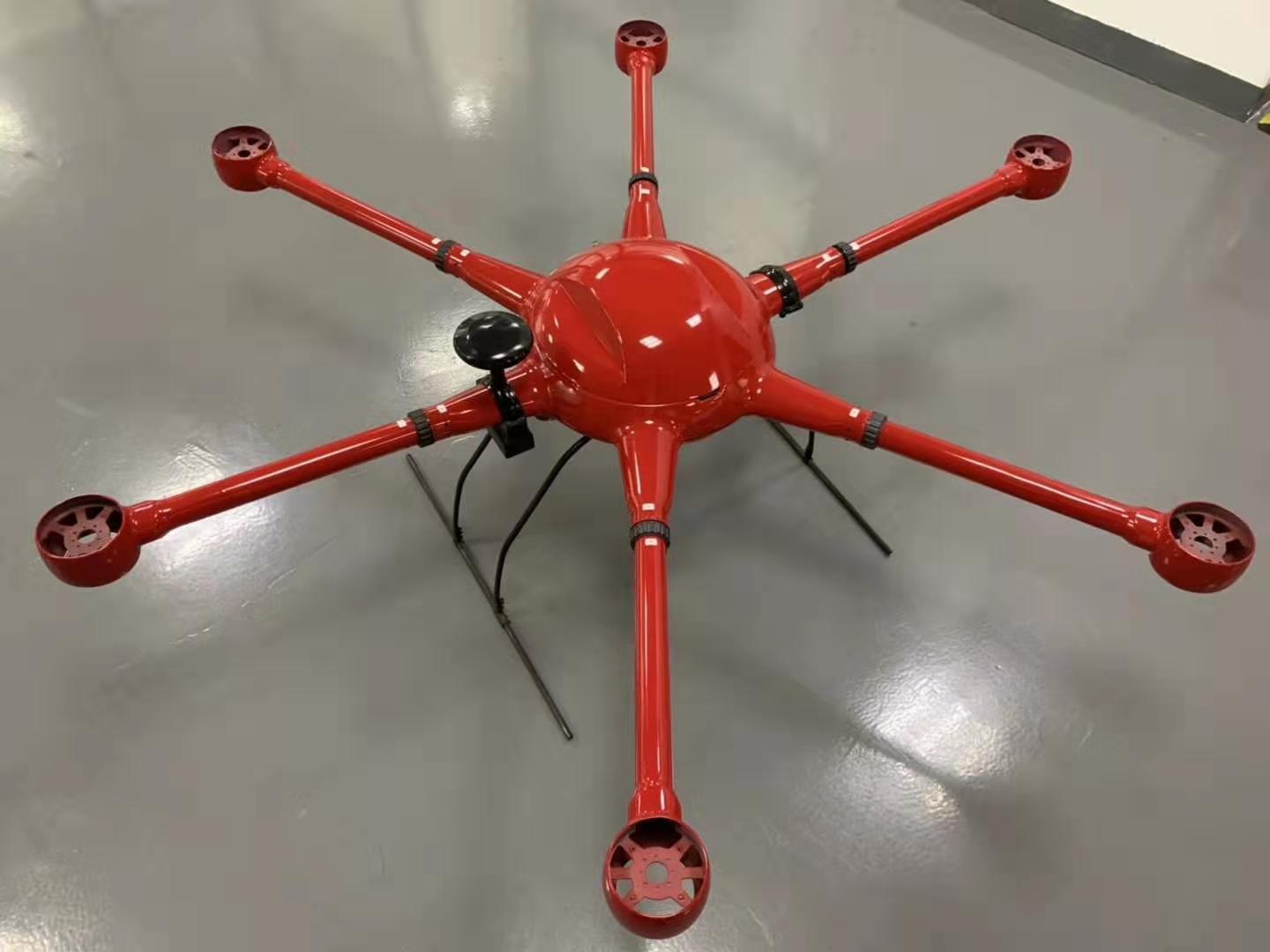

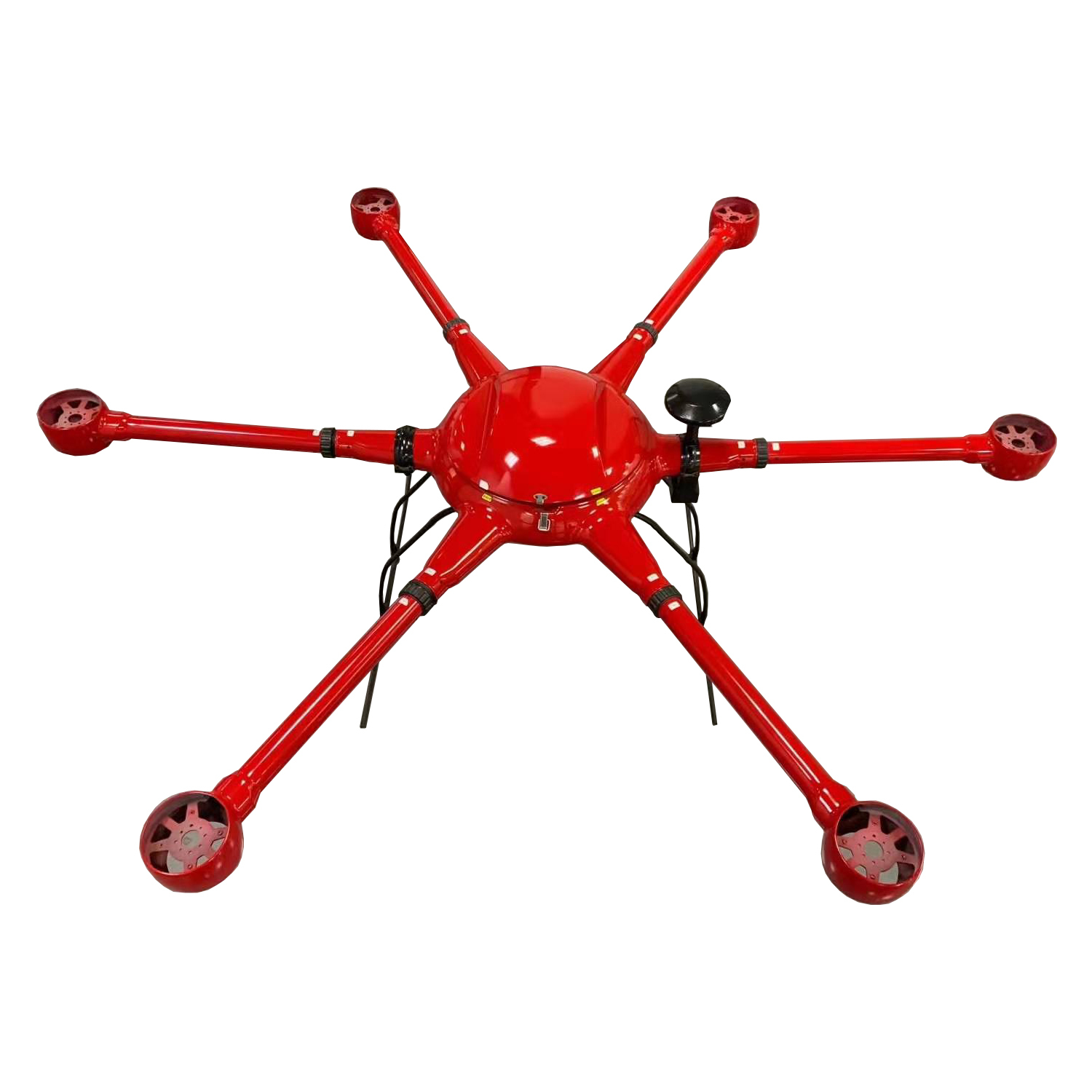

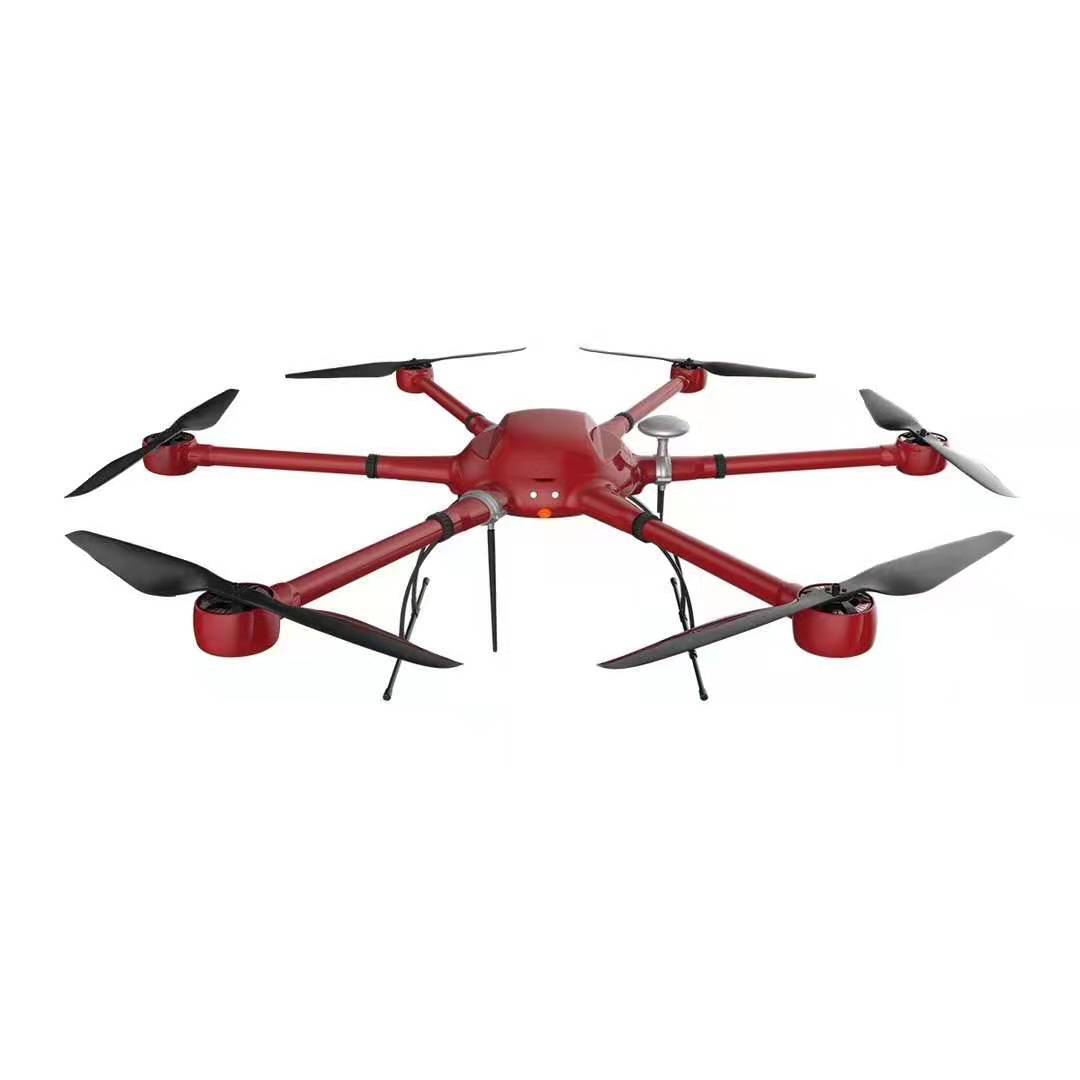

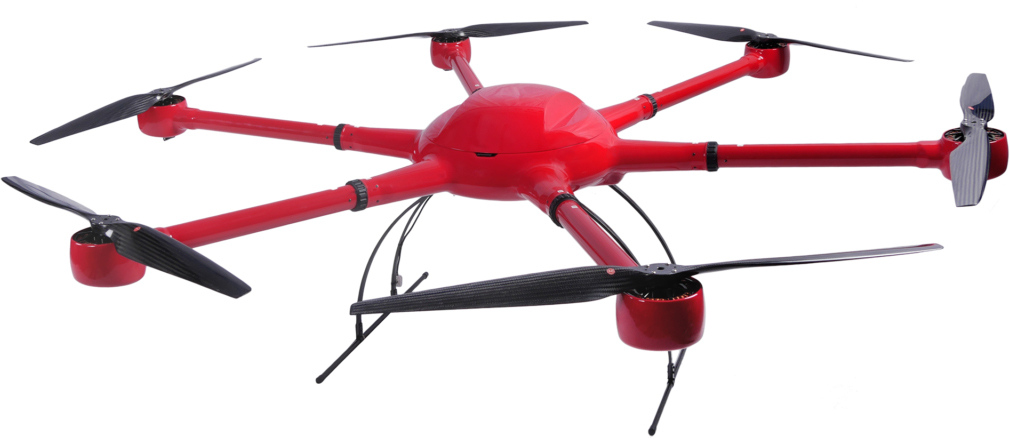

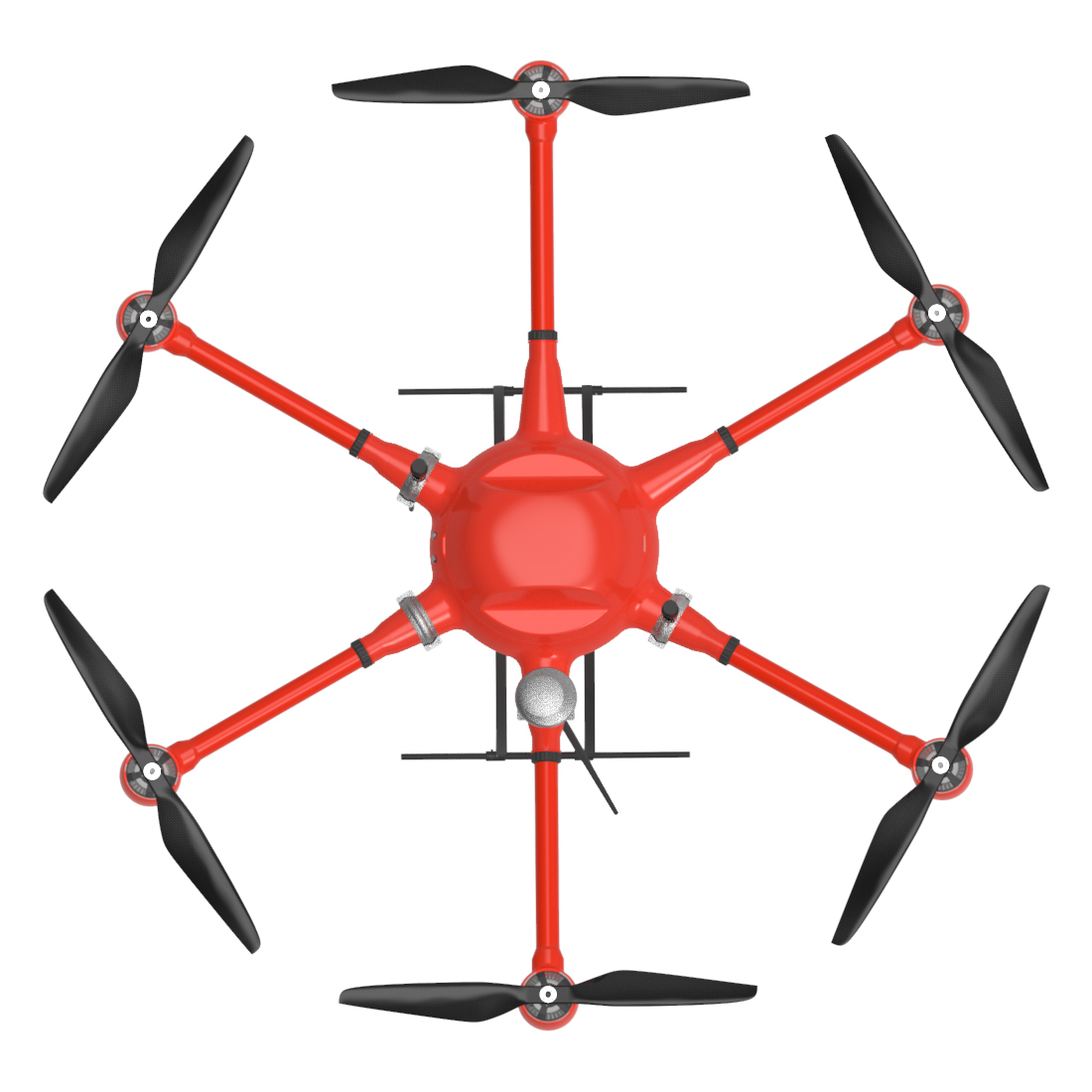

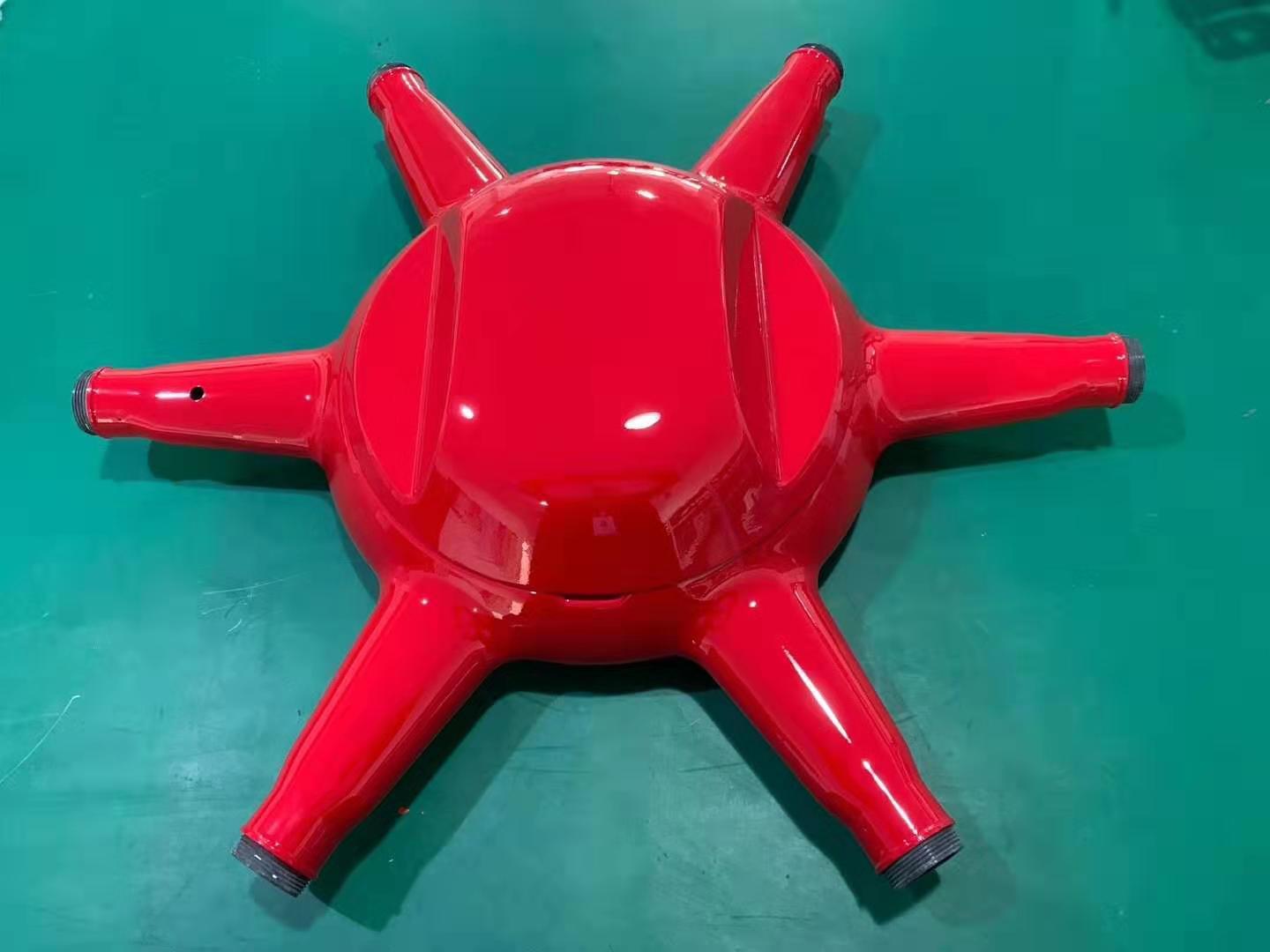

Heavy Lift Drone FD1550 is an excellent long endurance and heavy payload capacity empowers, FD1550 an outstanding industrial hexacopter drone. It features lightweight carbon fiber one-body fuselage. Its arm comes with a unique structure for convenience and security. The drone is rain- and dust-proof and excels in loading ability. With a maximum flight time of 81 minutes and a maximum payload of 12kg, FD1550 is a reliable high-performance hexacopter flight platform for various industrial applications such as security, fire control, and electric fields. As an open platform, FD1550 is compatible with orthographic camera, oblique camera, zoom camera , 3D laser radar, and other customized payloads within 12 kg.  FD1550 adopts carbon fiber unibody that features high endurability and strong protective properties and it is able to work under harsh environment like windy and rainy weather. with Plug-pull arm design allows for quick release, reduced package size and great portability. It is always ready whenever you want to start your mission.

Specification:

Aircraft Type: Hexacopter

Wheelbase: 1550mm

Airframe Material: Carbon Fiber And Composite Materials

Package Size: 400*730*930mm (standard)/ 700*700*300mm+110*45*20MM(portable)

Weight (Without Batteries Or Payload): 6.8kg

Max. Take-Off Weight:21-23kg

Max. Payload: 10-12kg

Max. Climb Speed: 4m/s

Cruise Speed: 10m/s

Max. Flying Speed: 15m/s

Battery Capacity: 22000mAh*12S LiHV 30000mAh*12S 18650 22000mAh*12S2P LiHV

Flight Time (Without Load): 62min(22000mAh*12S LiHV) 74min(30000mAh*12S 18650) 81min(22000mAh*12S2P LiHV)

Max. Control Radius: 10km

Max. Altitude AMSL: 4000m

Hovering Accuracy:Vertical ±1m, Horizontal±1.5m

Max. Wind Resistance： Level 6

Operation Temperature： -20～60℃

IP Rating：IP56

Suggest setup:

-4x 16000mAh 6S Lipo battery

-3 pair UL28×8.4 Propeller

-6x T-MOTOR Flame 60A ESC

-6x T-MOTOR U8II KV100 Motor

NOTE： THE PRICE IS JUST KIT, WITHOUT ANY ELECTRONIC
