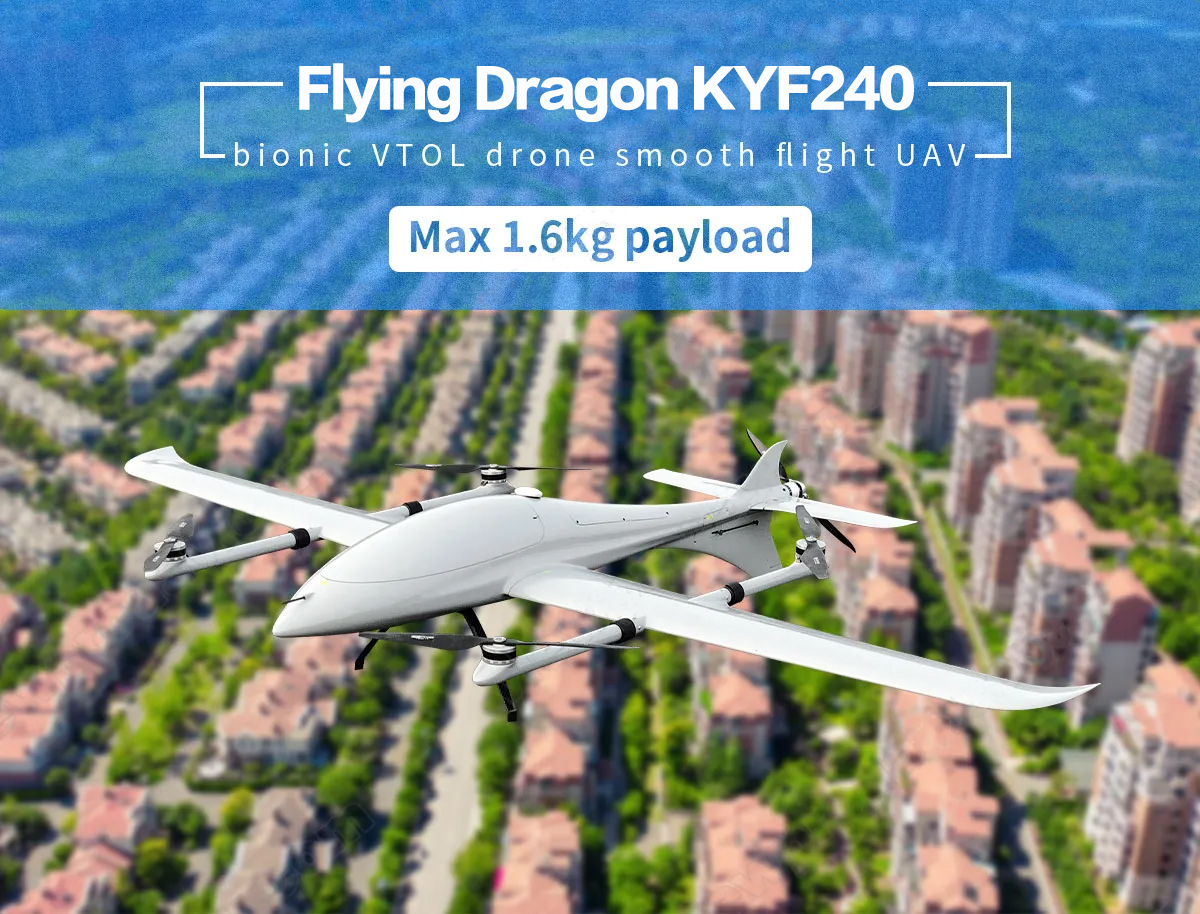

Flying Dragon KYF240 Bionic VTOL Drone Smooth Flight UAV max 1.6kg Payload 3.5hrs Endurance

Product Description:

Essential details

Condition:New

Place of Origin:Suzhou, China

Type:VTOL Fixed Wing

Wingspan:2398mm

Material:Carbon fiber

Airframe Weight:7.4kg(contains the power)

MTOW:10kg

Max Payload:1.6kg

Flight Time:210min with 1.6kg payload

Flight Altitude:4500m

Wind Resistance:12m/s (fixed wing), 9m/s (VTOL)

Flying Dragon KYF240 adopts a high lift airfoil with conventional 4 + 1 layout, high lift drag ratio and excellent  flight performance, providing 1.6kg load capacity with great equipment installation space and 3.5hrs ultra long endurance time. It  has not only the advantages of multi rotor vertical takeoff and landing, but also has the advantages of long endurance, low noise and reconnaissance of fixed wing.

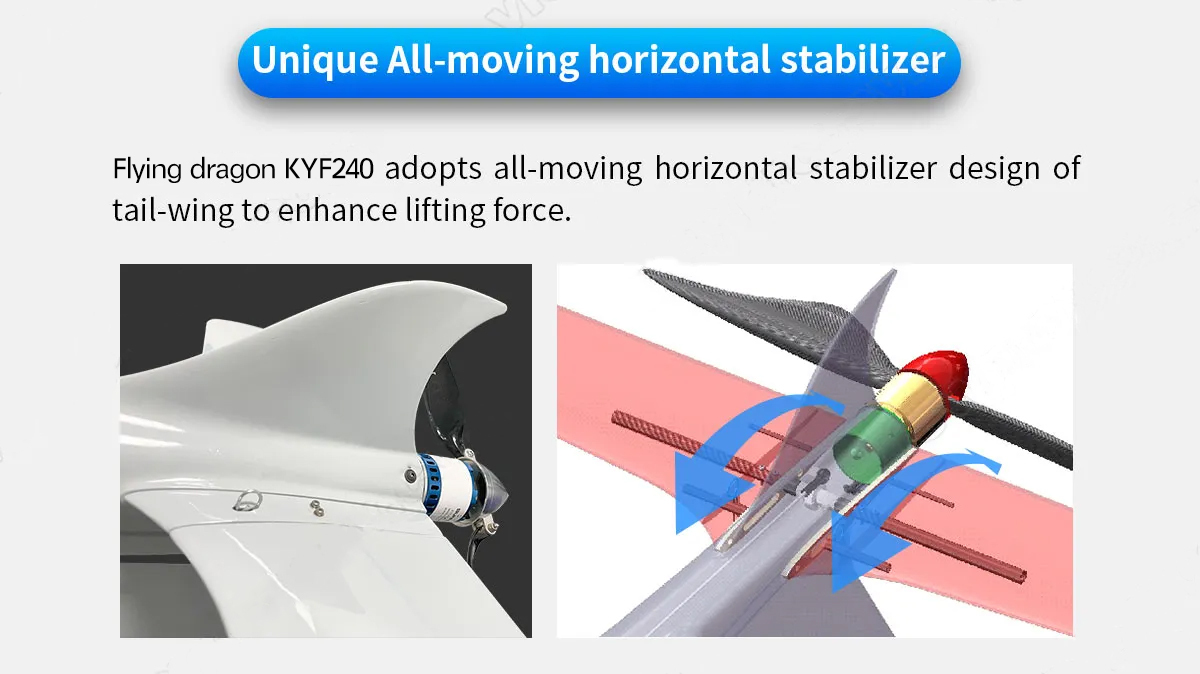

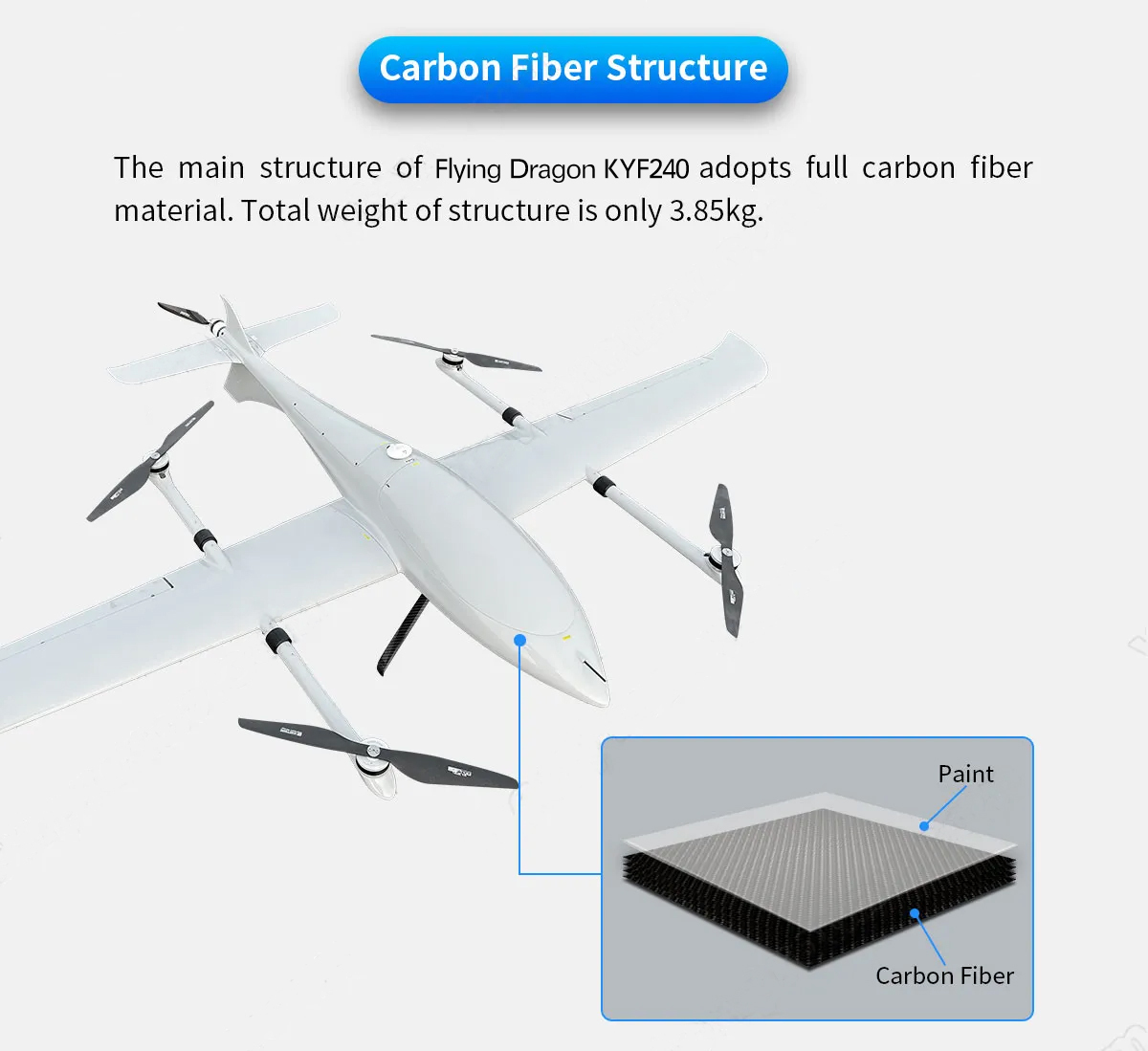

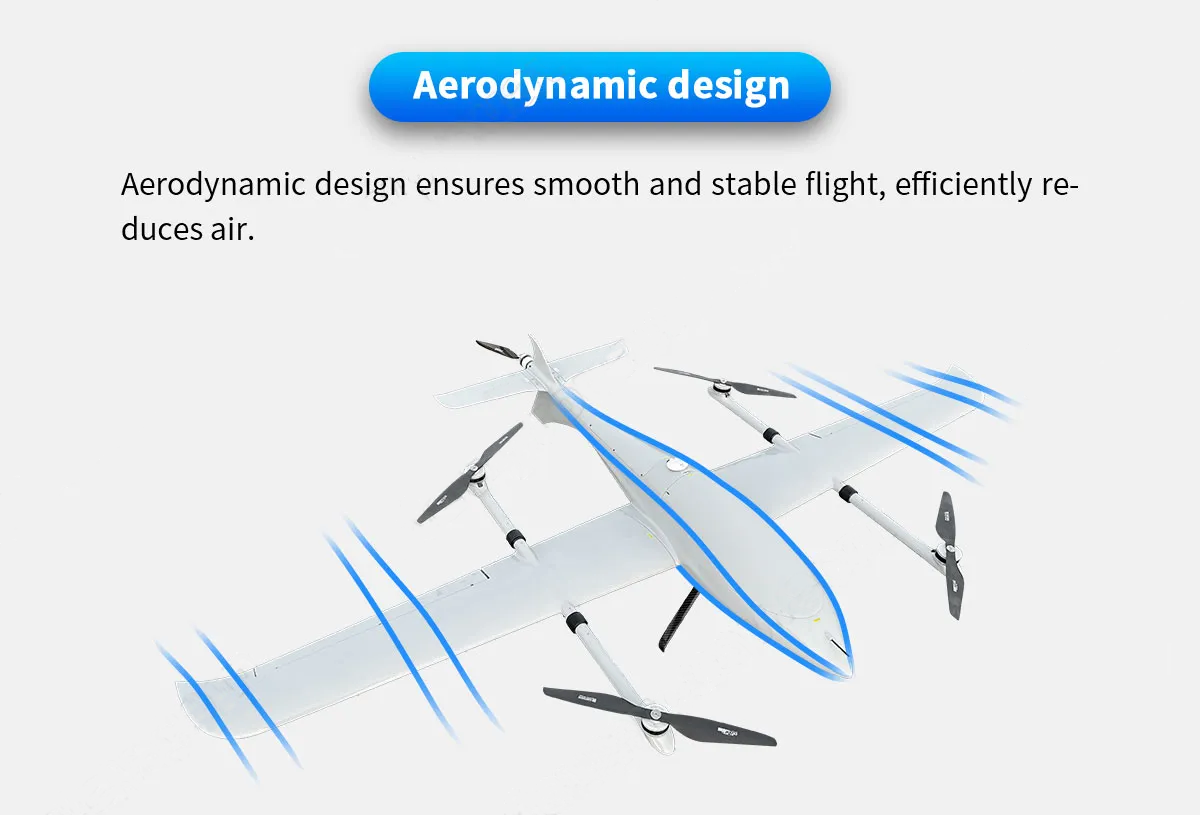

The whole body is made of carbon fiber material, which ensures the light quality and the absolute structural strength. The advanced aerodynamic layout design ensures smooth and stable flight, efficiently reduces air resistance and power consumption. The highlight is the unique tail-wing which is designed as an elevator, greatly improves the aircraft lift.

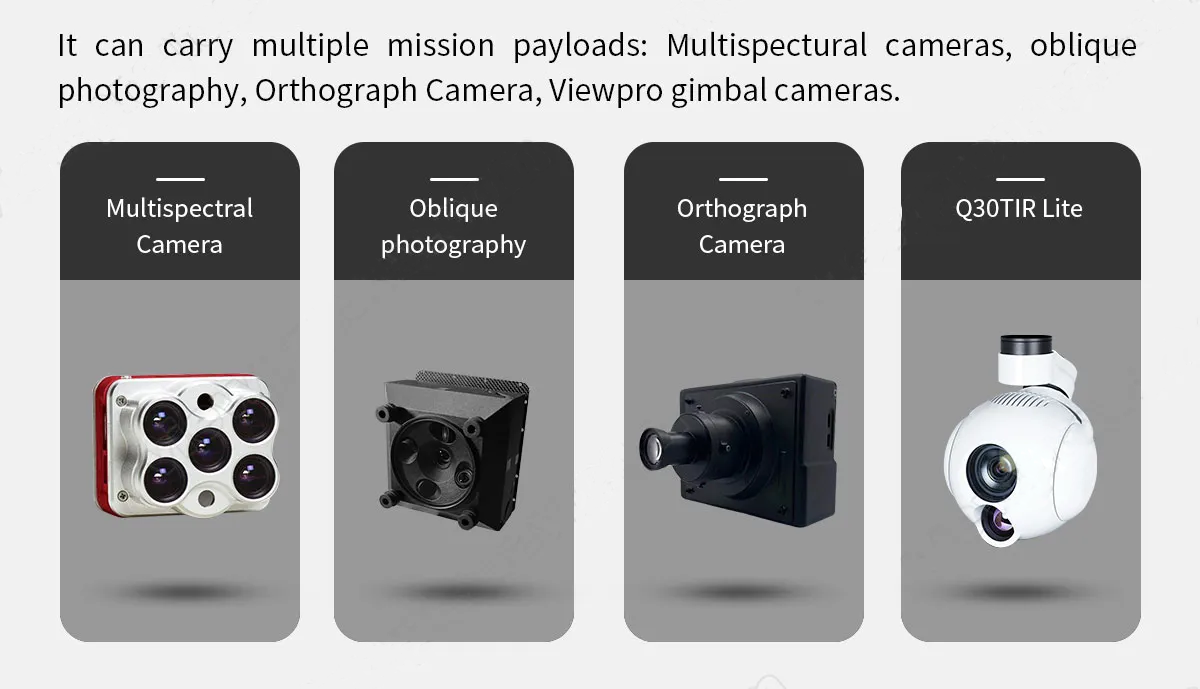

Orthographic cameras and oblique photography camera (VO-120S) are recommend for Flying Dragon KYF240 for 2D and 3D mapping, to generate high-precision orthophoto maps and digital elevation models

It’s mainly used for surveying and mapping, border patrol, environment monitoring, ground reconnaissance and aerial photography applications.

Model No.：Flying Dragon KYF240

Type:VTOL Fixed Wing

Color:White as default (Support customization)

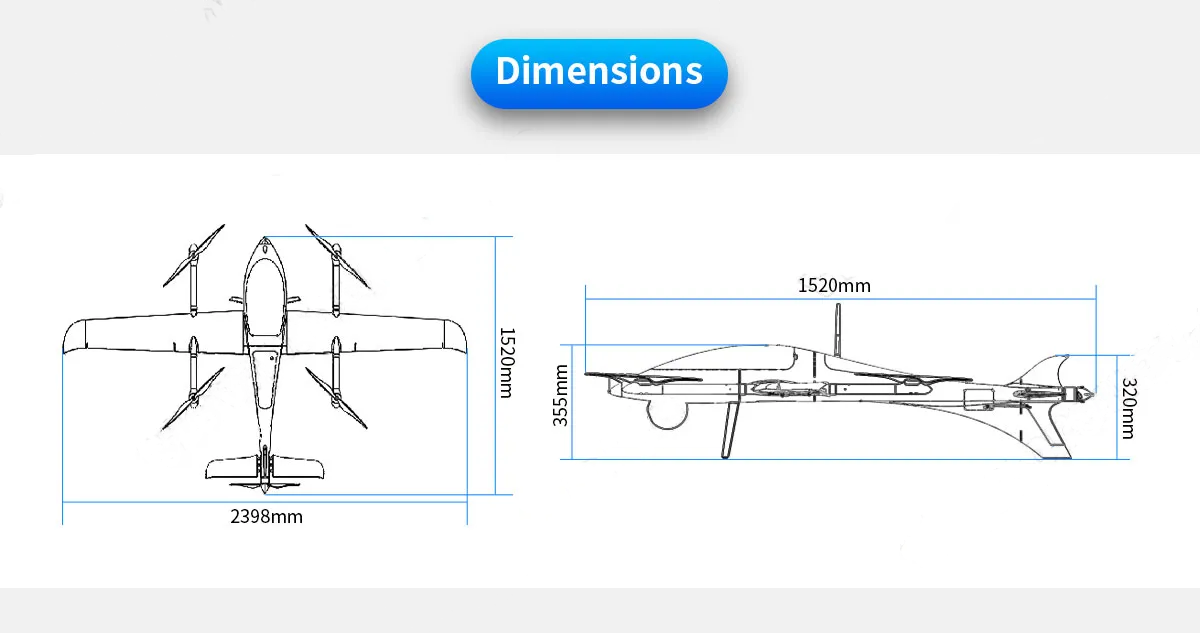

Wingspan:2398mm

Length:1520mm

Belly to Ground:173mm

Battery Cabin:13×10×6cm

Material:Carbon fiber

Airframe Weight:7.4kg(contains the power)

MTOW:10kg

Max Payload:1.6kg

Suggested Load:1kg

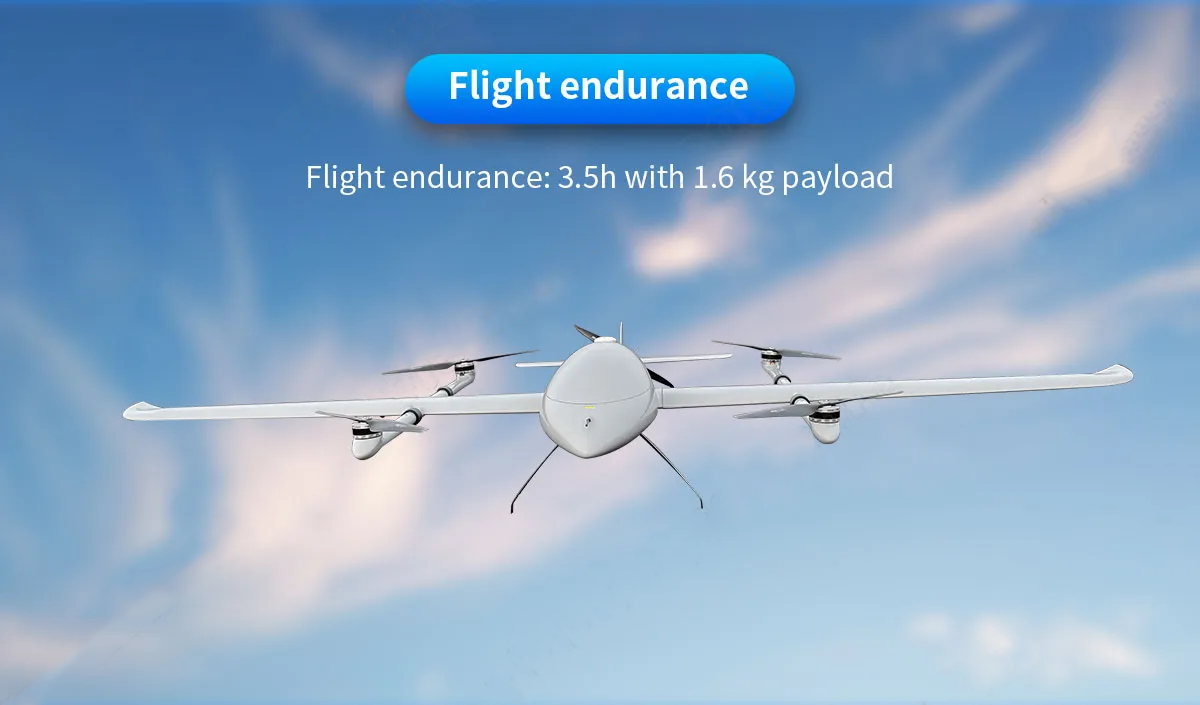

Flight Time:210min with 1.6kg payload

Max Cruising Speed:80km/h

Stall Speed:54km/h (15m/s)

Max Flight Altitude:4500m

Max Wind Resistance:12m/s (fixed wing), 9m/s (VTOL)

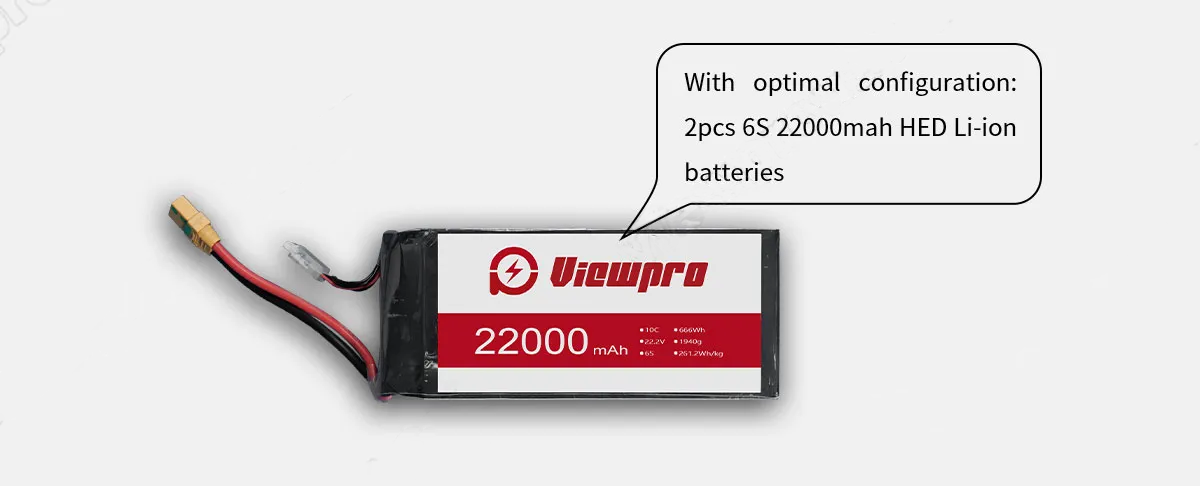

Battery (Recommended):2*6S 22000mAH Li-ion

Working Temperature:-20~50℃

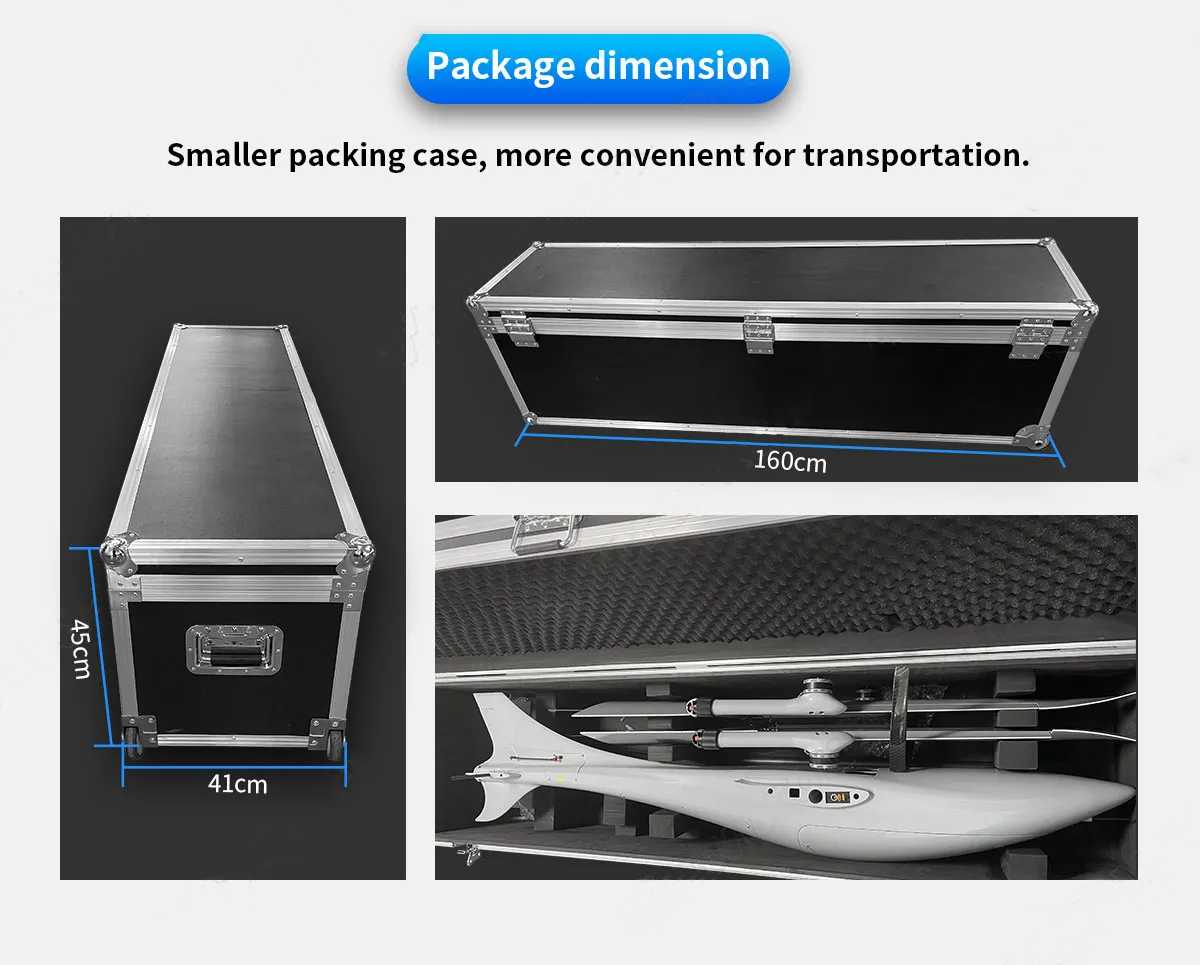

Package Chargeable Size:162×42×46cm
