EAGLE KYF390 Super Powerful Hybrid VTOL Drone with Robust 3.9m Wingspan 10hrs Flight Time

Product Description：

Essential details：

Condition:New

Place of Origin:Suzhou, China

Type:VTOL Fixed Wing

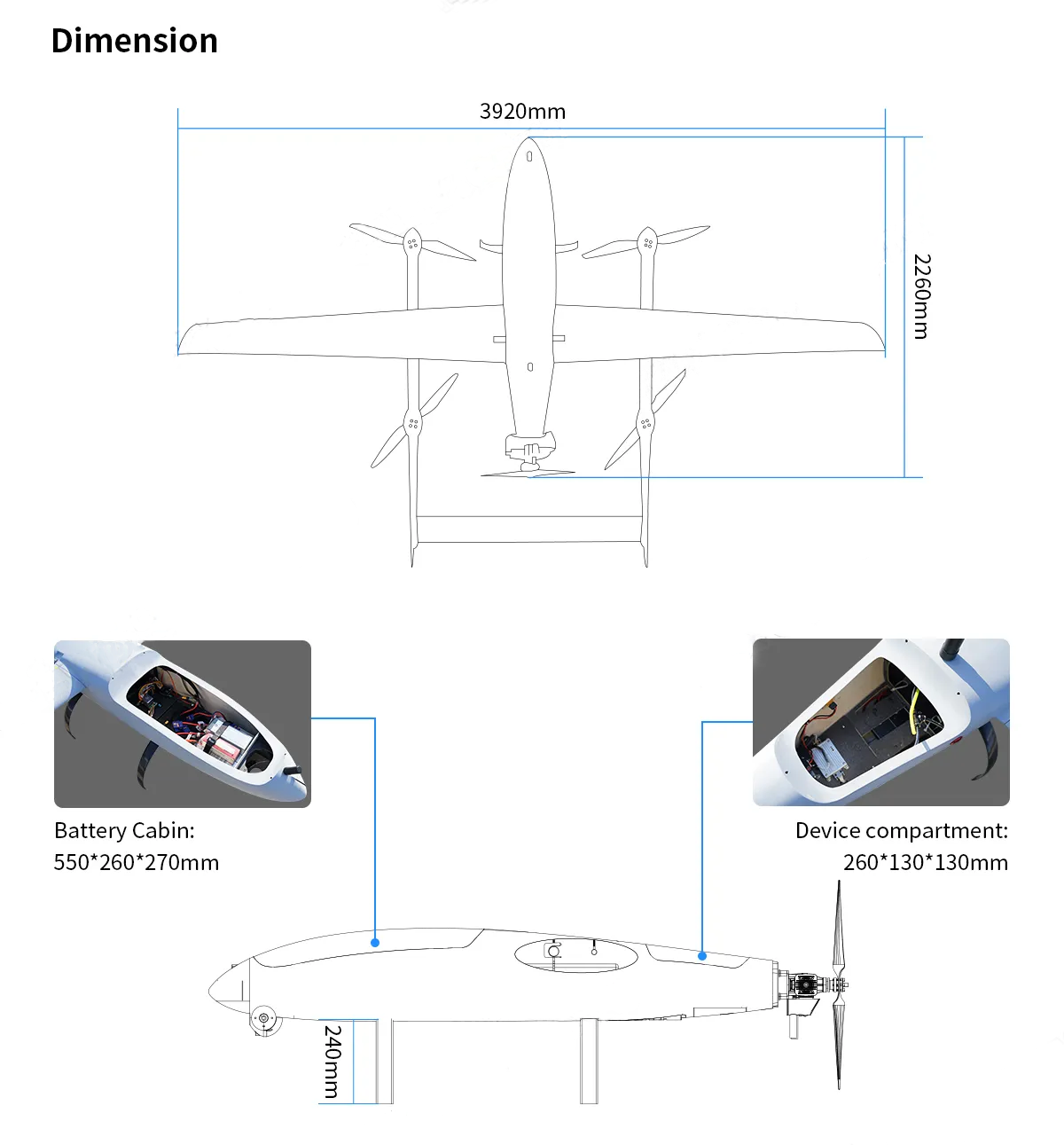

Wingspan:3920mm

Material:Carbon fiber + glass fiber

Airframe Weight:19kg (including propulsion system)

MTOW:35kgs

Max Payload:8kgs

Flight Altitude:5000m

Wind Resistance:>12m/s (fixed wing), 10m/s (VTOL)

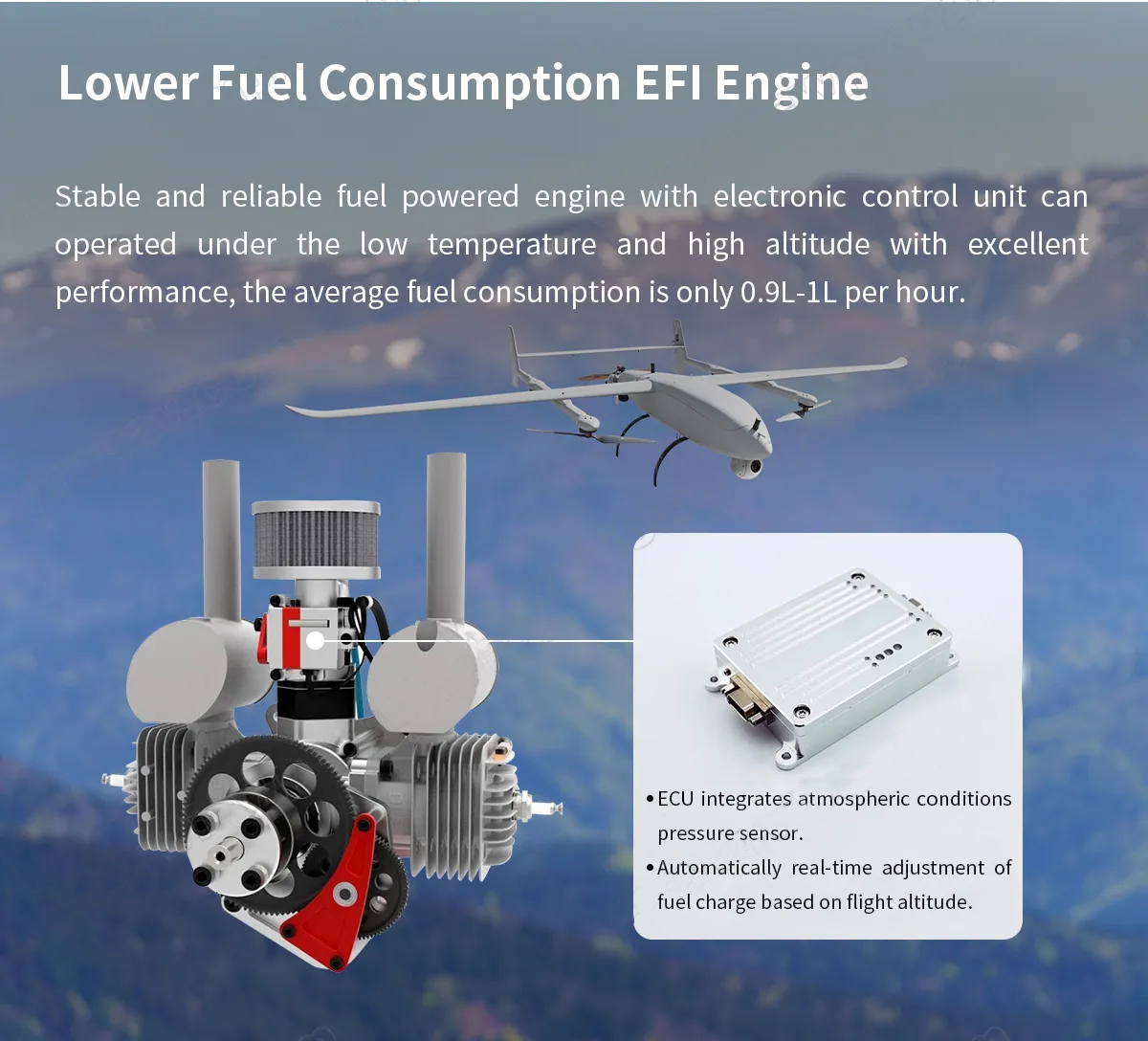

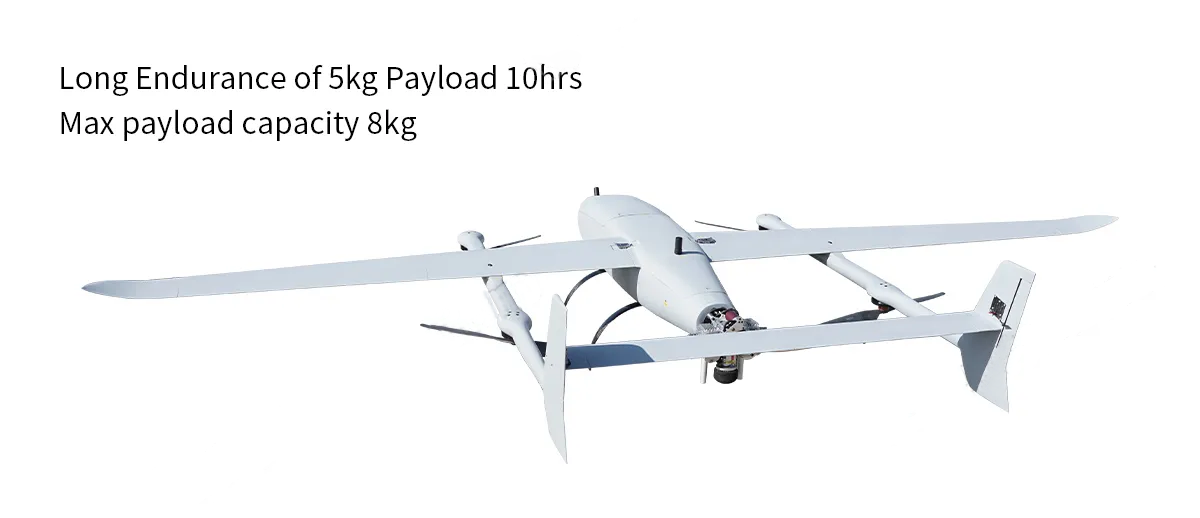

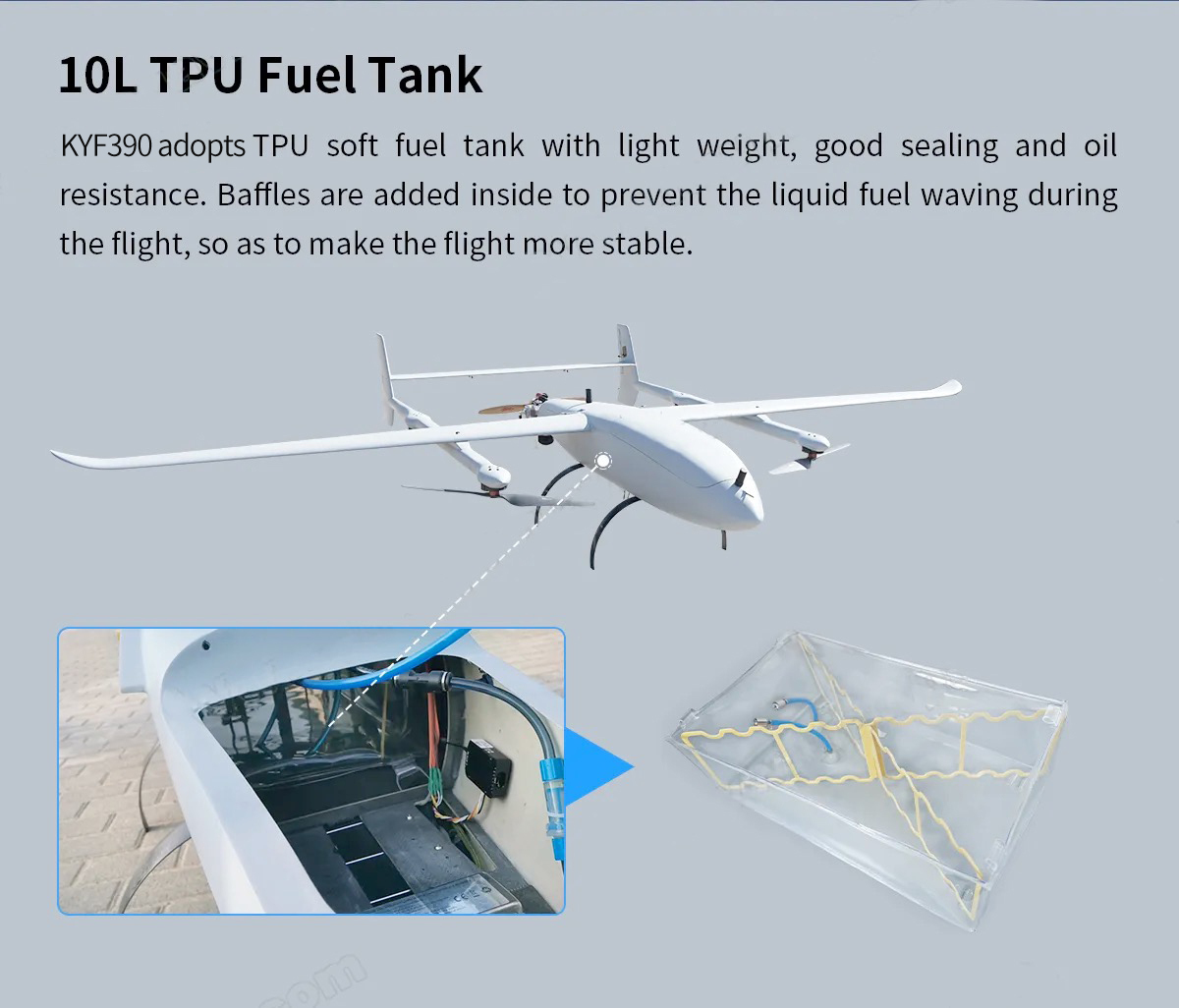

Viewpro EAGLE KYF390 Hybrid VTOL fixed wing is a industrial-grade UAV features with 3.9m wingspan designed for long endurance and heavy lift missions. The tail engine is EFI version which is advantage at fuel saving. The average fuel consumption is only 1L/hr. With a fuel powered engine and 10L petrol, the endurance is up to 10 hours with 5kg payload, and 8hrs at maximum payload capacity 8kg.

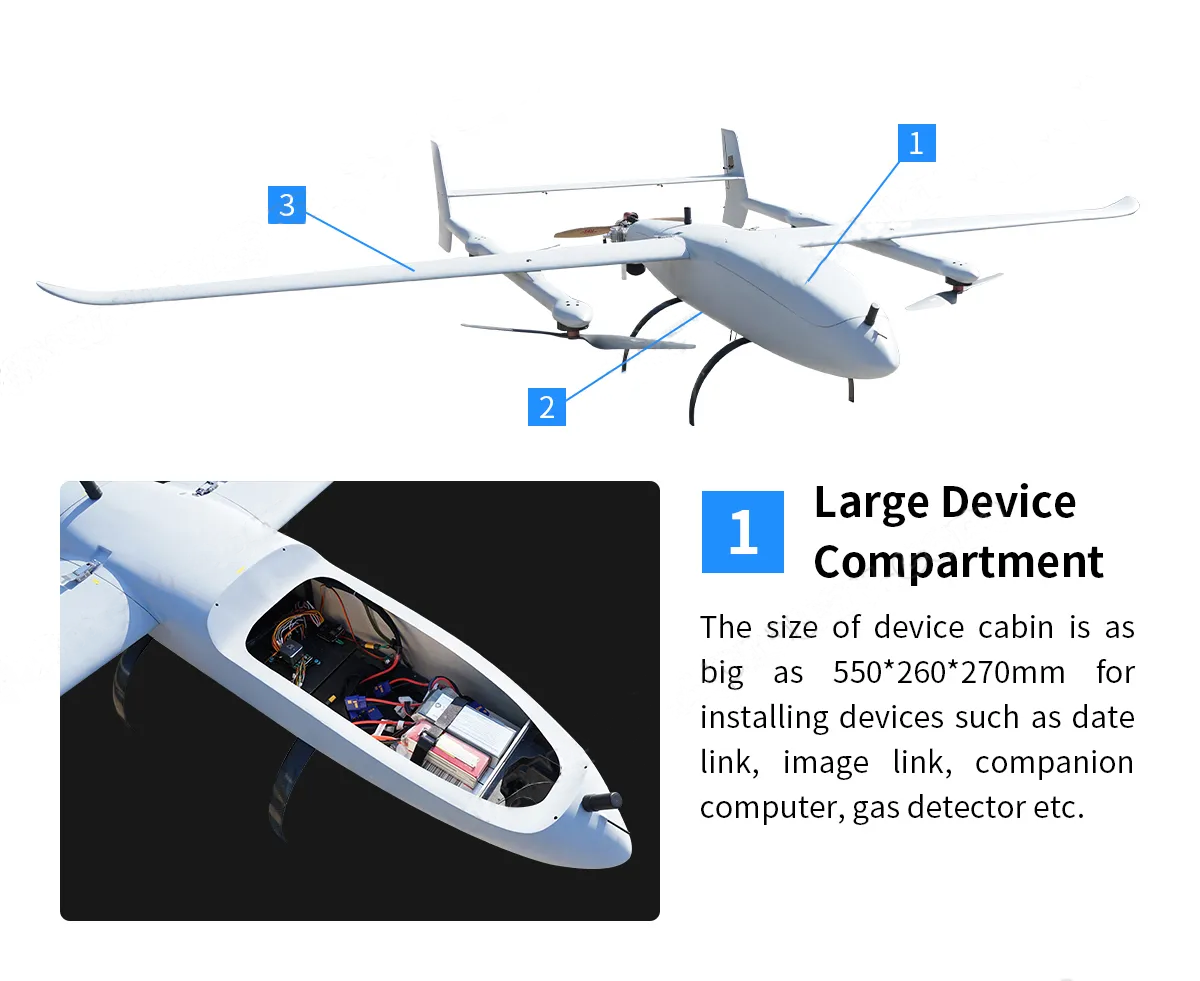

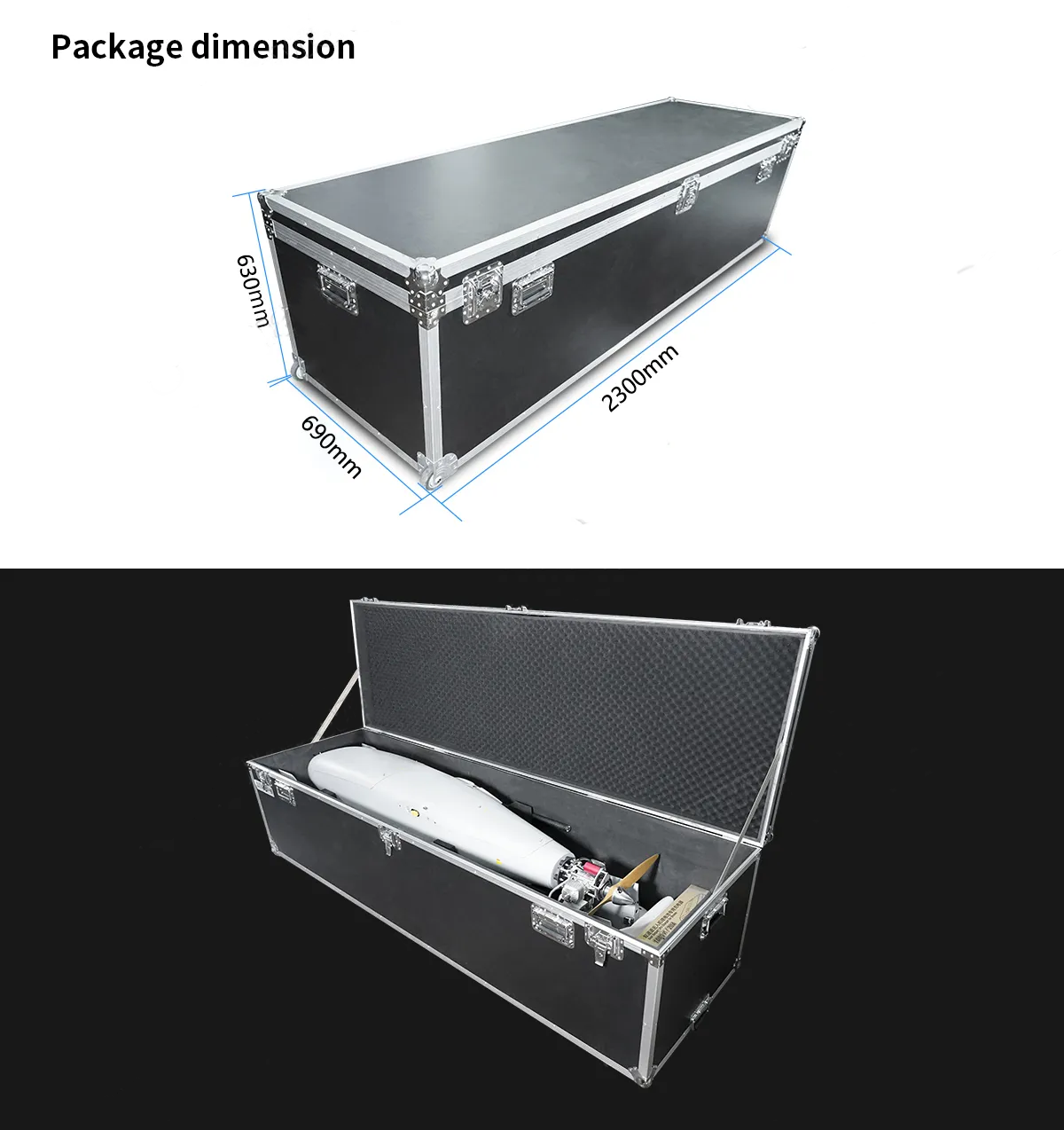

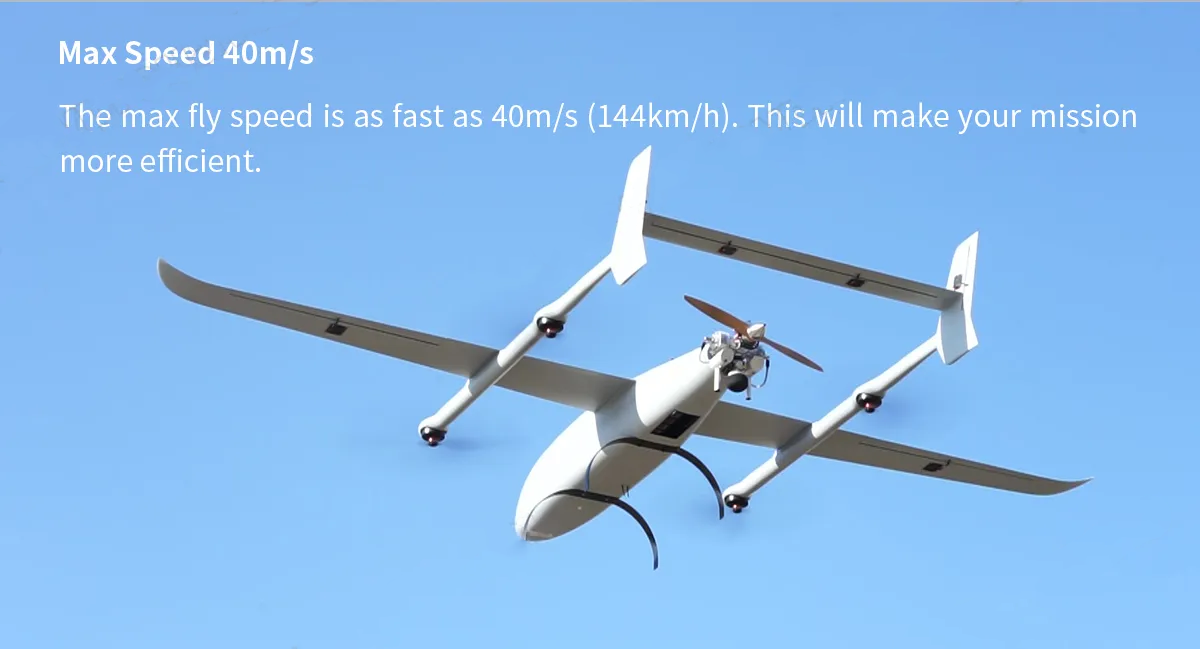

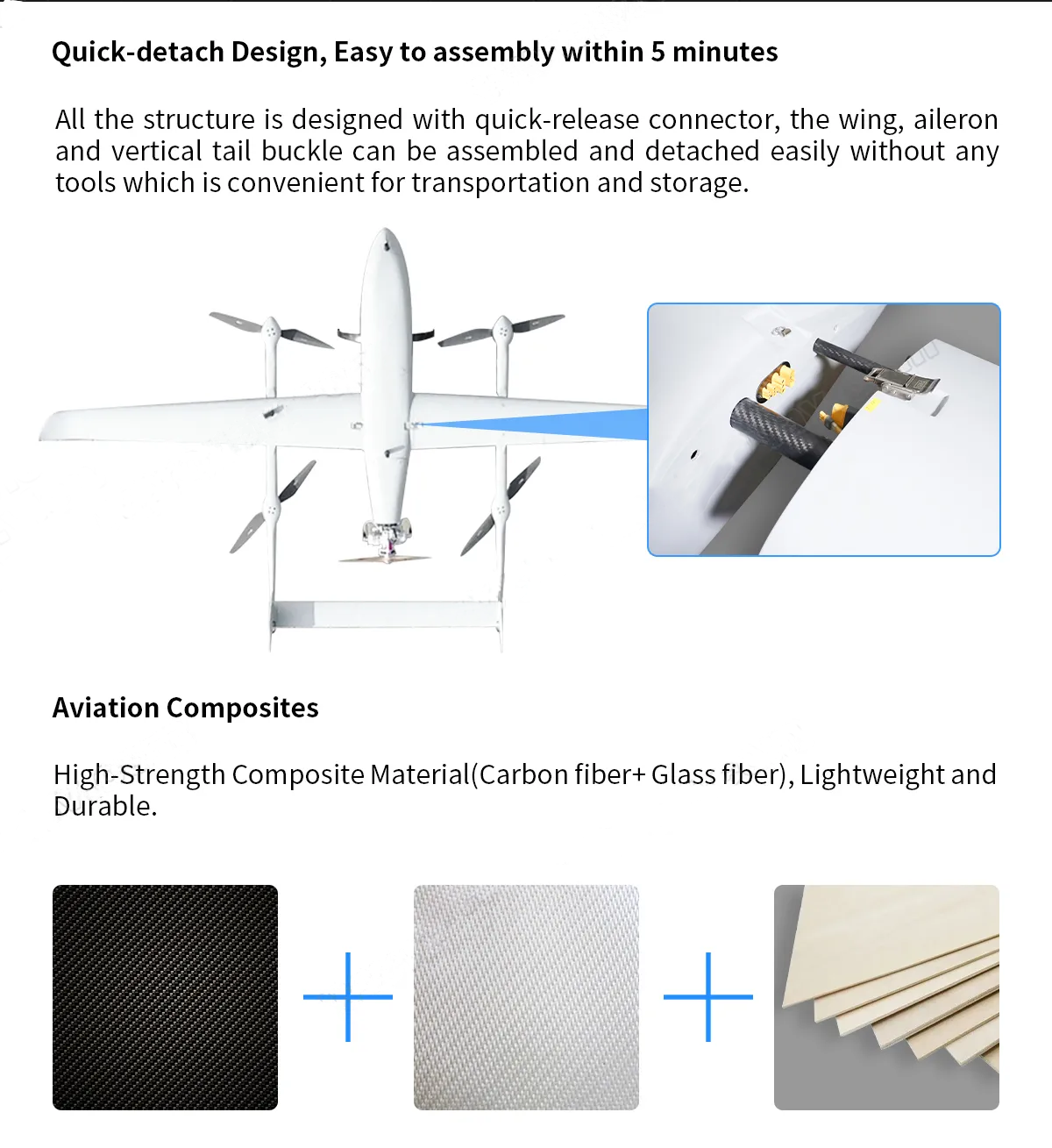

Made of Kevlar, Carbon Fiber and Glass Fiber, highly advanced aerodynamic design, formed the KYF390 as a light and durable platform. It is easy to assemble and storage with quick-release design. EAGLE KYF390 is equipped with a powerful T-motor VTOL propulsion system and 23inch engine propeller that makes the maximum cruising speed 144km/h, Max. Take-off Weight 35kg.

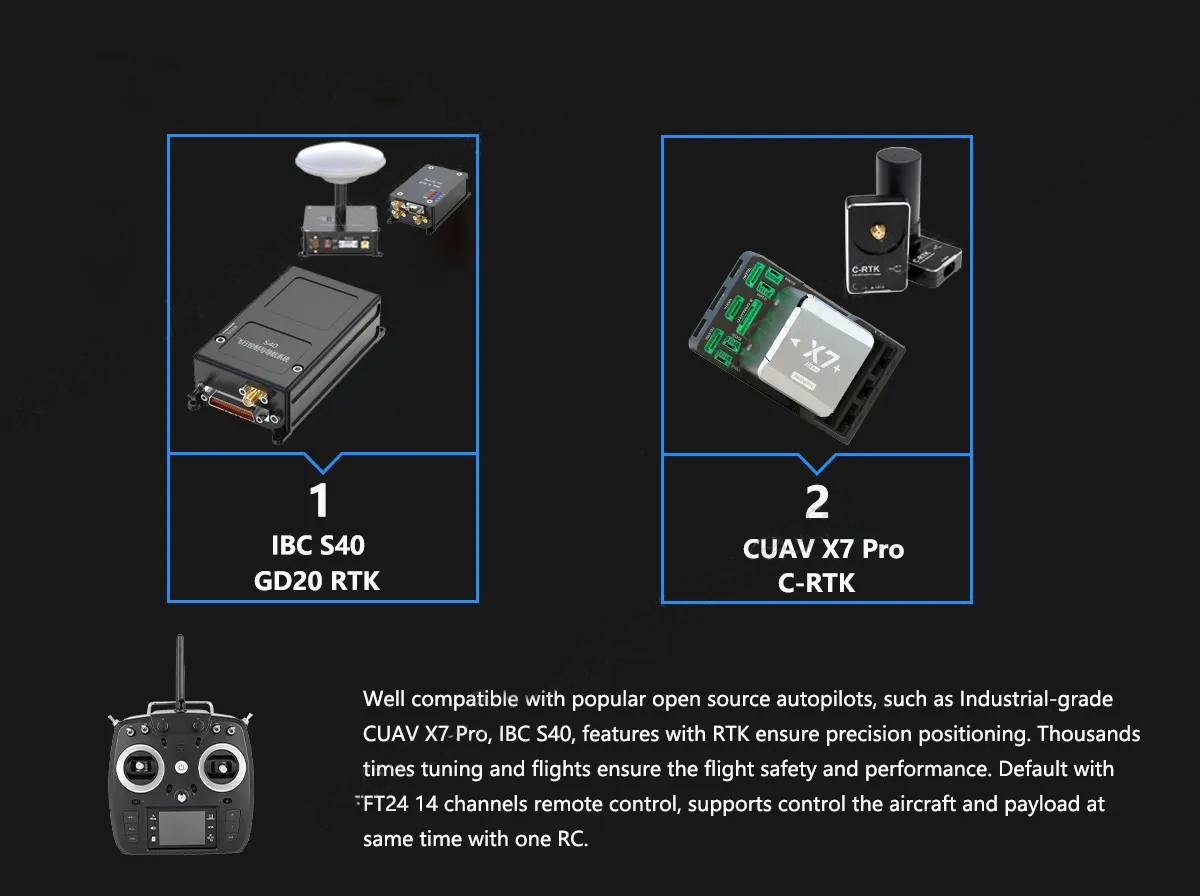

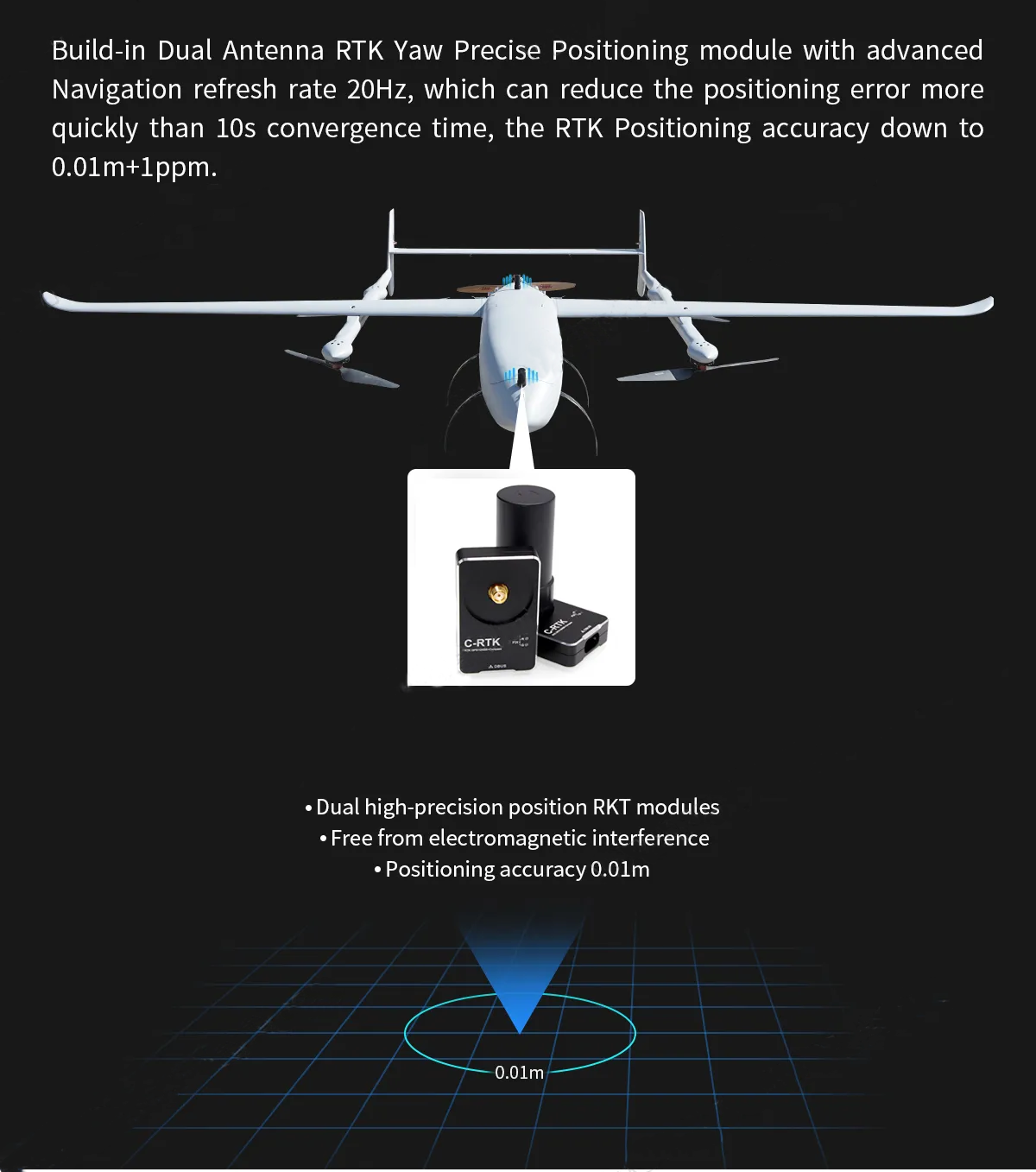

Open source autopilot CUAV X7 Pro and industrial level flight control i-Balanace S4 are optional for the professional platform. And it is equipped with dual-RTK position module to continuously and precisely lock the course without fear of electromagnetic interference, dispensing from manual gyro calibration with the heavy system as normal VTOL. It is widely used in various domains, such as long range power/oil pipeline inspection, railway patrol, surveying and mapping, border patrol, forest fire-fighting, cargo delivery etc..
