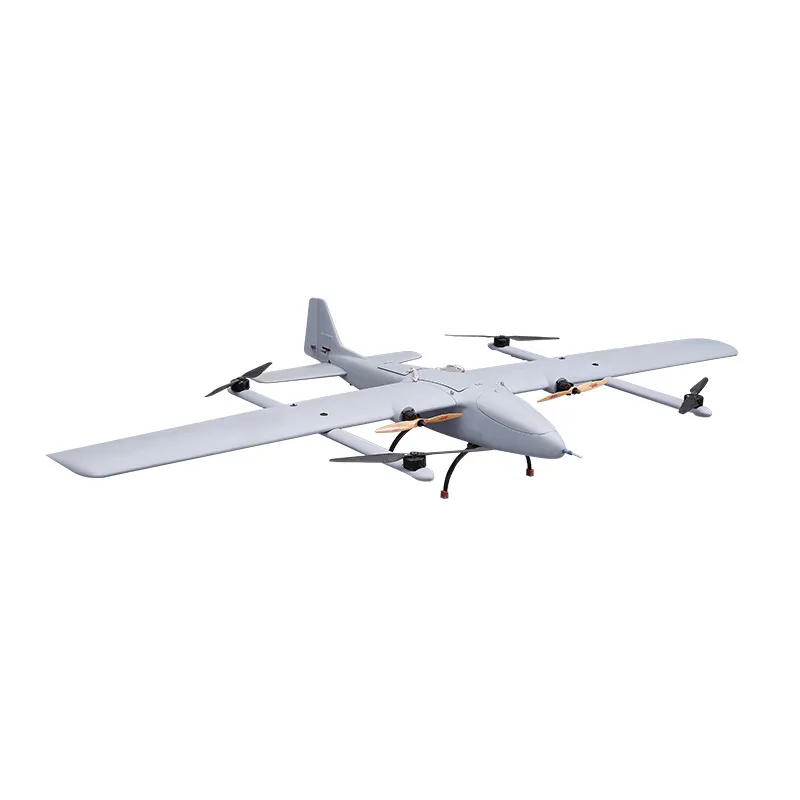

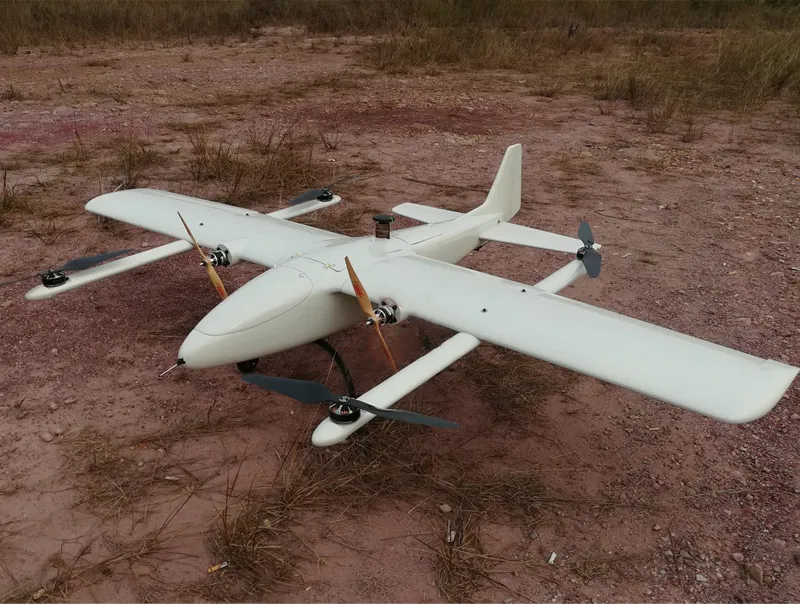

KYF160E Electric Powered 4 Hours Endurance Aerial Photography Video Surveillance CCTV Drone VTOL Fixed Wing UAV

Product Description：

Essential details

Type:Gyroplane

Place of Origin:Suzhou, China

Power System:Electric Powered

Takeoff & Landing:VTOL

Duration of flight:4 hours

Cruise speed:35-80KM/H

Maximum takeoff weight:15Kg

Payload:2Kg

Wind Resistance:Grade 6

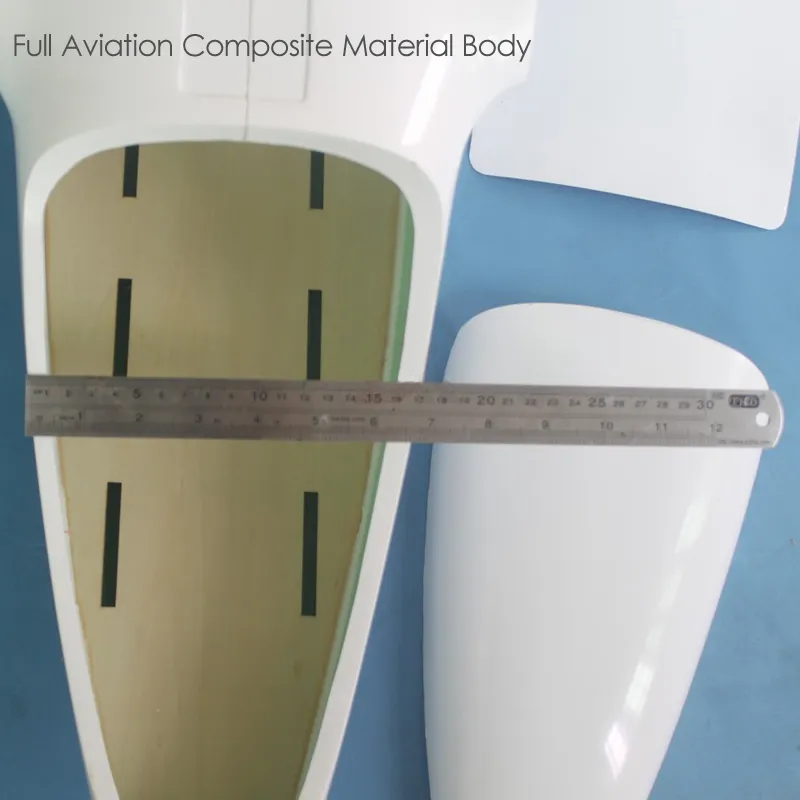

Body material:Full composite material

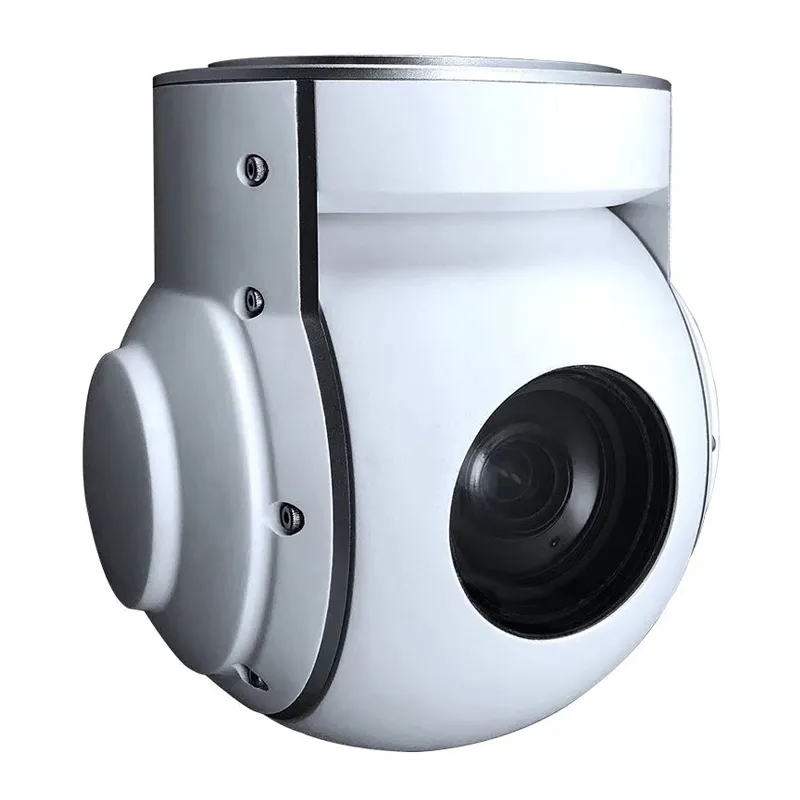

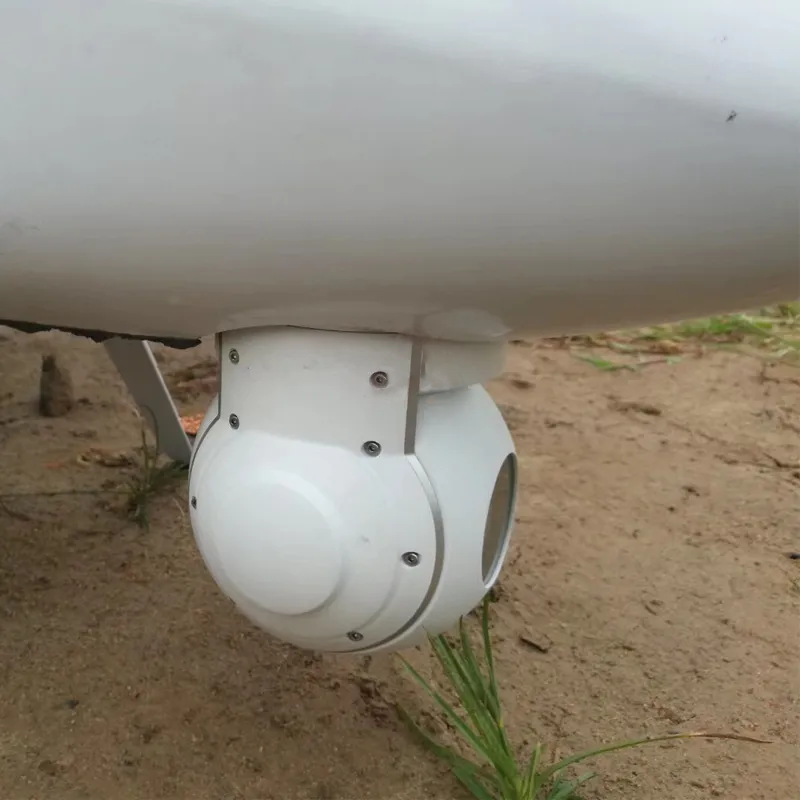

Optical Accessory:Pod camera / PTZ

Application:Mapping/surveillance

Model features：

Vertical take-off and landing：Low requirements for landing and landing points, high operating efficiency.

Simple structure：Easy to operate in a short time.

Full autonomous flight： One-button take-off, safe and efficient.

High security：Double protection for emergency landing and open umbrella.

Duration of flight： 4 hours

Aircraft Parameters：

Cruise speed：35-80KM/H

Aircraft length：1.62M

Wing width：3.0M

Maximum takeoff weight：15KG

Payload：2KG

Wind resistance：Grade 6

Power System：Electric Powered

Body material：Full composite material

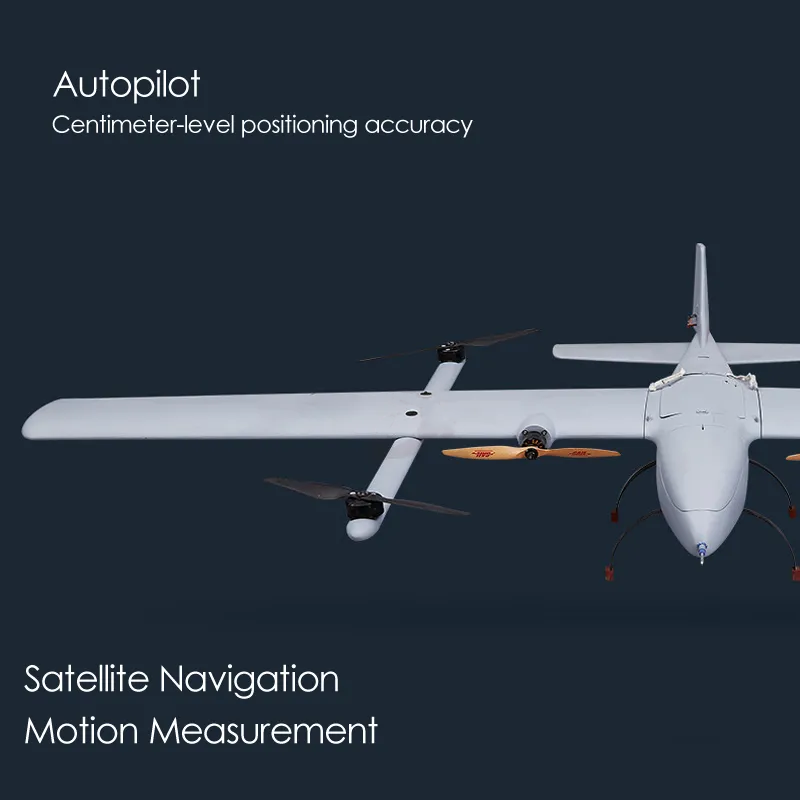

Autopilot performance:
full coverage of the model;
Satellite navigation
[real-time GPS/GLONASS/Galileo/B Multi-system signal reception];
attitude accuracy 0.5°, heading accuracy 1°;
centimeter-level positioning;
High precision and high dynamic motion measurement.

1,Function description

Build-in normalization ,cross-correlation and tracking algorithm,

combining with object missing recapture algorithm, achieve stable

track of the target.

Support custom characters of user OSD, adaptive gate, cross

cursor, trace information display.

2,Tracking performance

1)Update rate of deviation pixel 50Hz

2)Output delay of deviation pixel <15ms

3)Minimum target contrast 5%

4)the minimal signal-to-noise ratio ( SNR) 4

5)Minimum target size 16*16 pixel

6)Maximum target size 160*160 pixel

7)Tracking speed 32 pixel/frame

8)The mean square root values of pulse noise in the target

position<0.5 pixel
