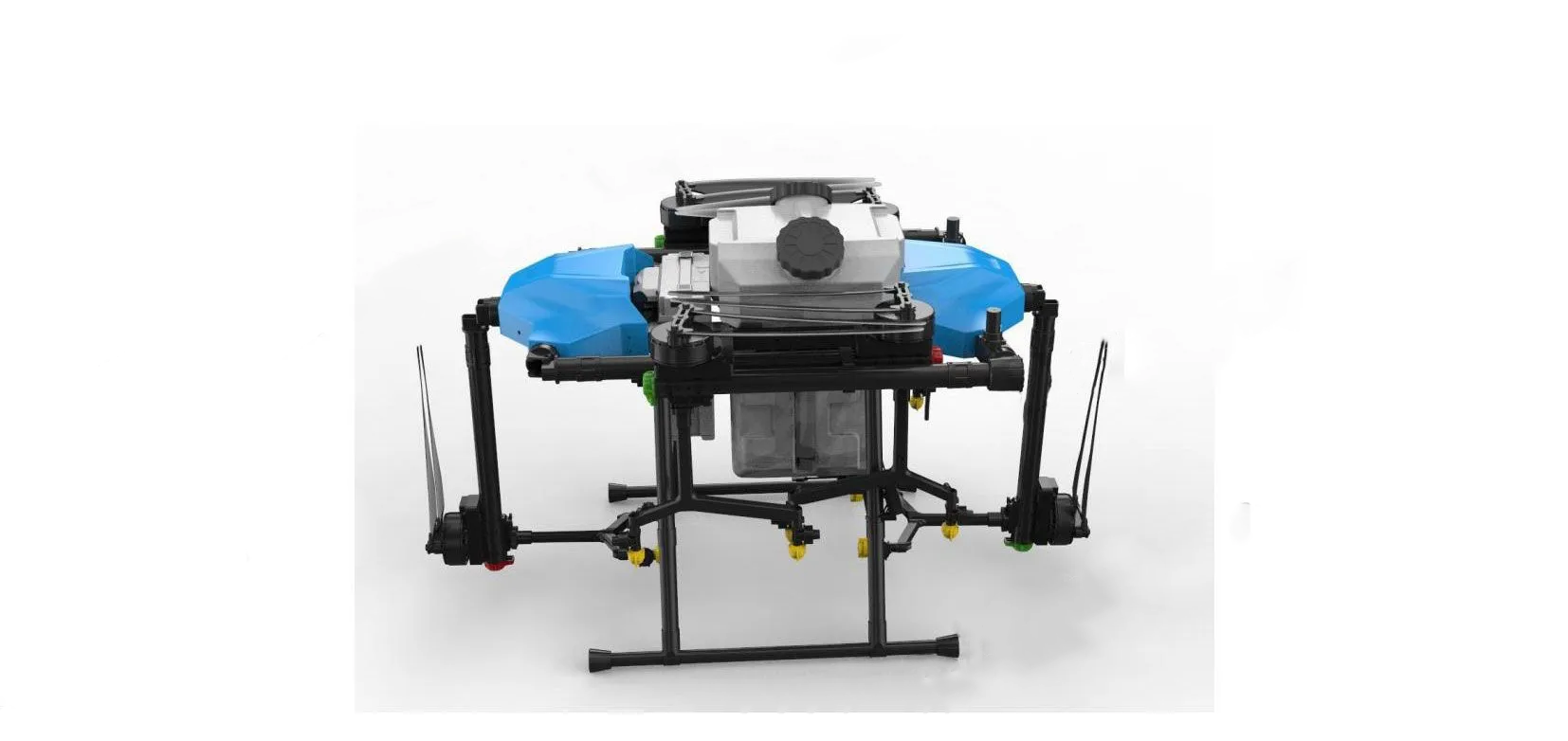

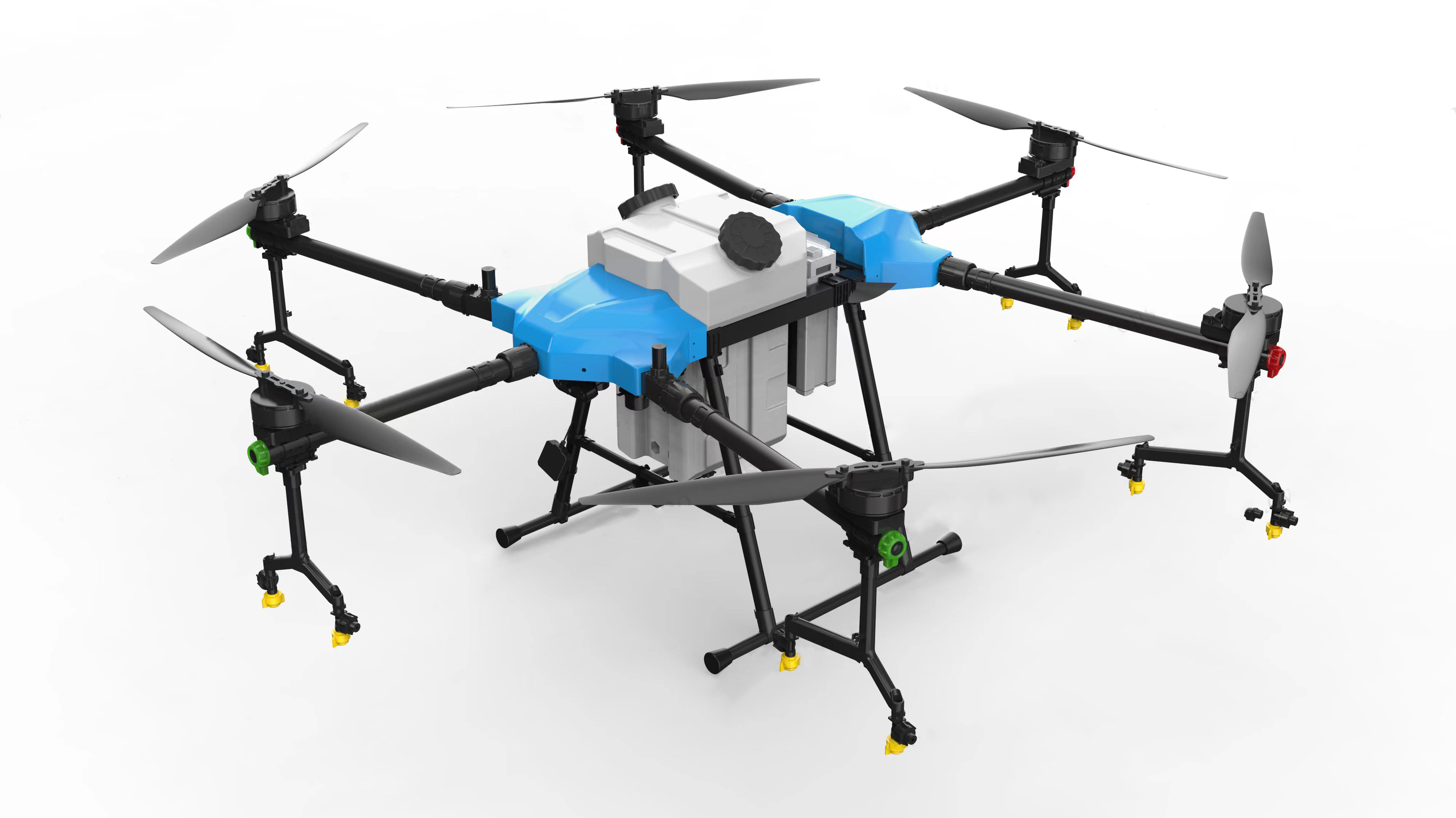

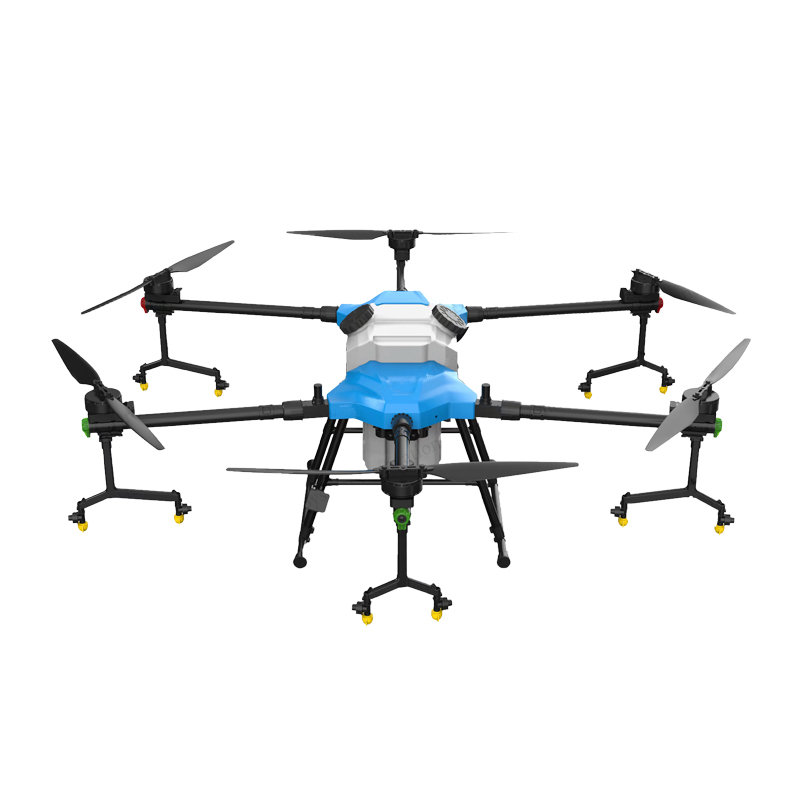

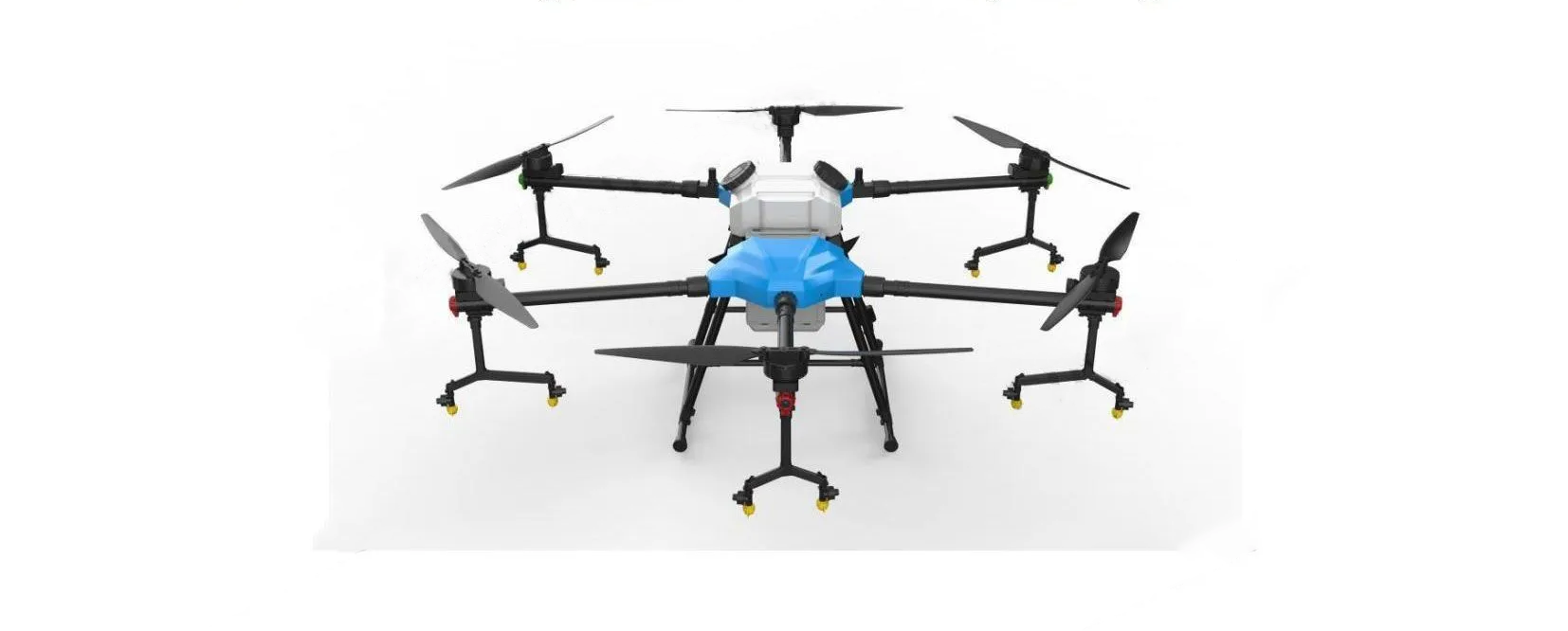

Coolfly C30 Agriculture Sprayer

Product Description:

Basic information

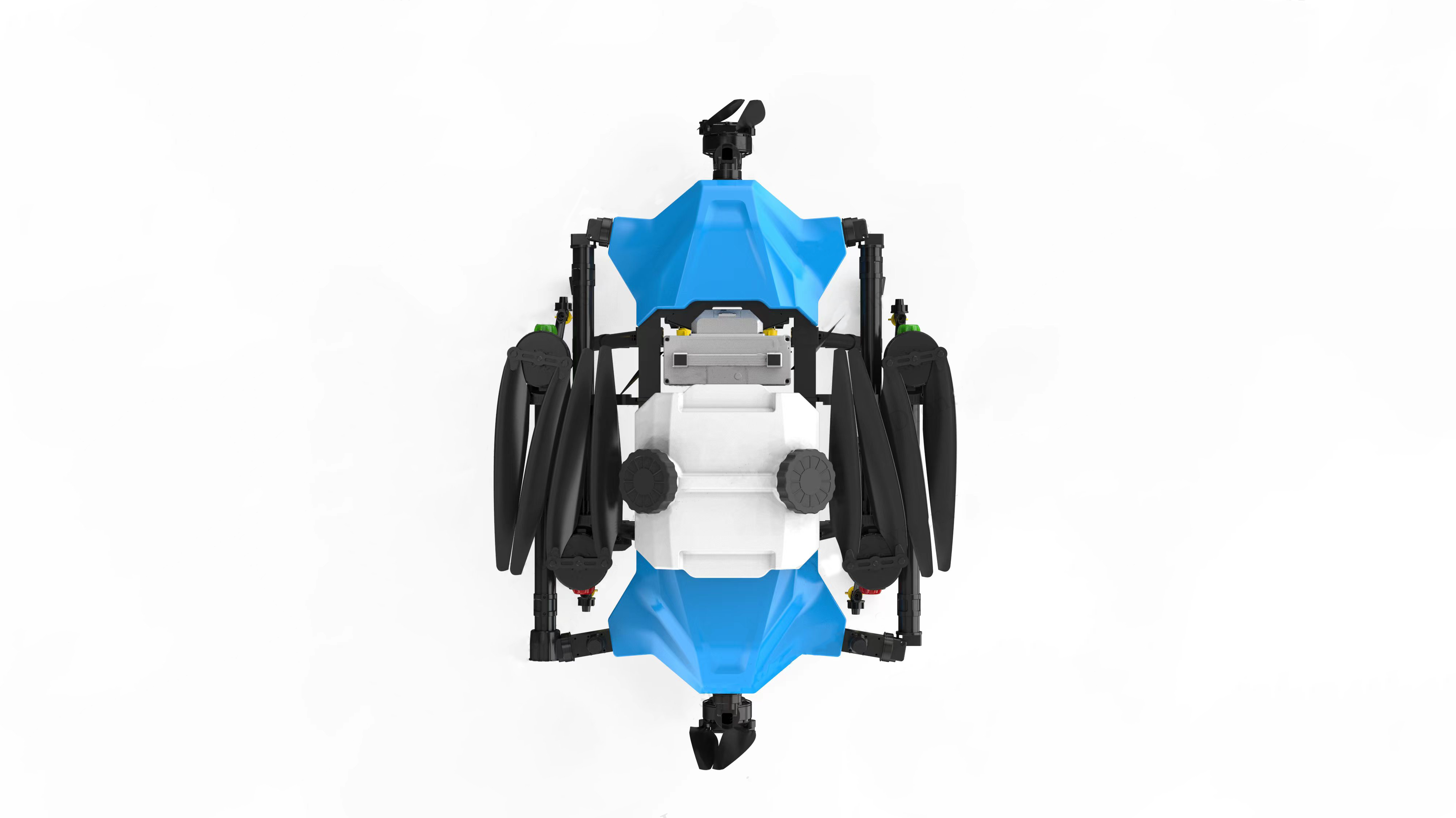

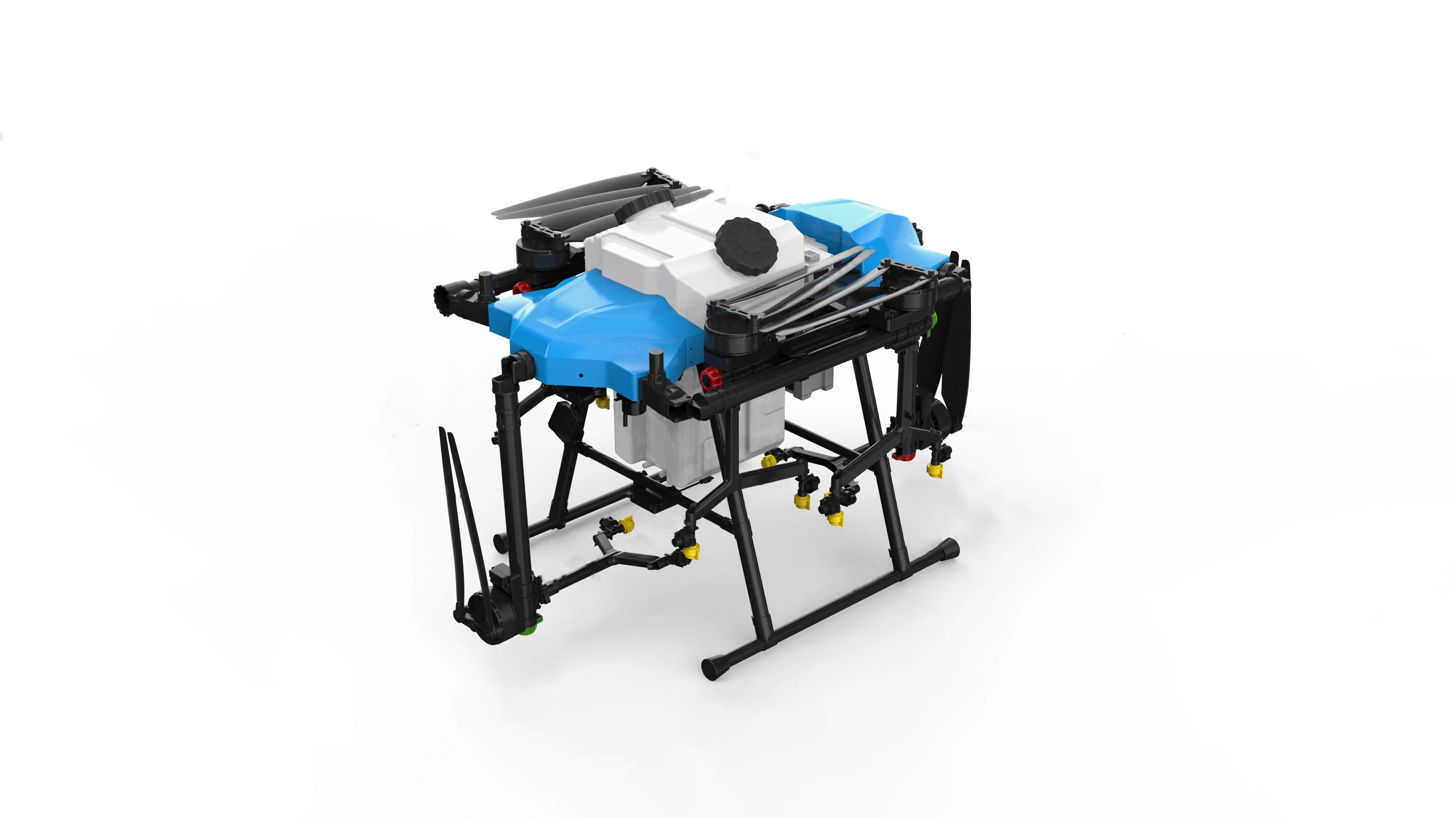

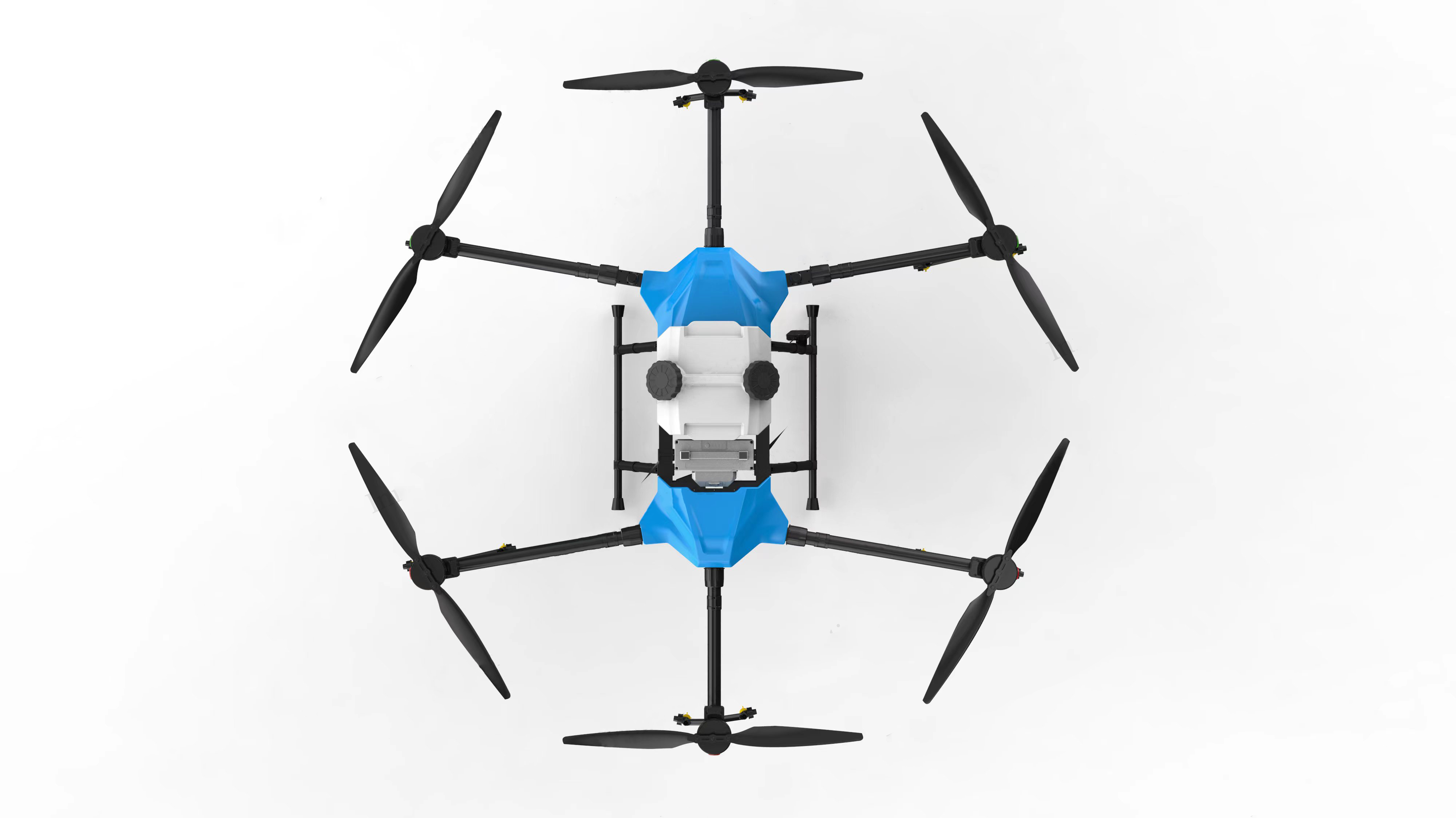

Wheelbase: 1950mm   Dimension: 2900x2900x780mm(Unfolded);  2050x1610x780mm(Unfolded with propeller folded) ;    1050x620x780mm(Folded)

Spraying system:

Pesticide Tank: 30L       Brushless pump: 2pcs   Flow rate: 5L/min*1      Working voltage: 51.8-60V      Nozzles: 2pcs      Max Spraying flow rate: 10L/min

Fogdrop Diameter: 100-400μm   Spraying width：4-9M

Drone Information:

RTF weight: 27.8kg(without battery)    Standard Take-off weight: 38.3kg    Max take-off weight: 68.3kg    Battery configuration: 14s(28000mAh, 51.8V)

Flight time: 20 mins(take-off weight 38.3kg)      8 mins(take-off weight 68.3kg)

Flight Speed:7m/s    Max speed: 10m/s    Max wind speed: 8m/s   Max flight altitude: 2000m

Working temperature: 0-40℃

Camera information:

FOV： 120°      Resolution:120x960,30fps

Searchlight information:

Power: <8W    luminous flux:1W/120-140 lm

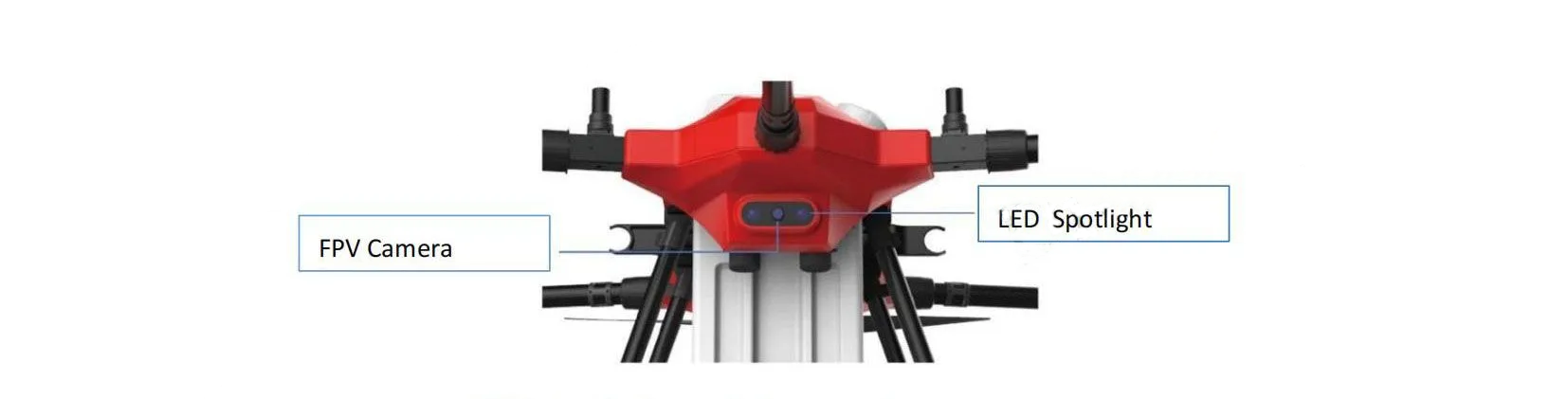

FOV 120° wide angle camera

• Real-time flight environment monitoring
• two high-brightness searchlights
• Convenient  for night work

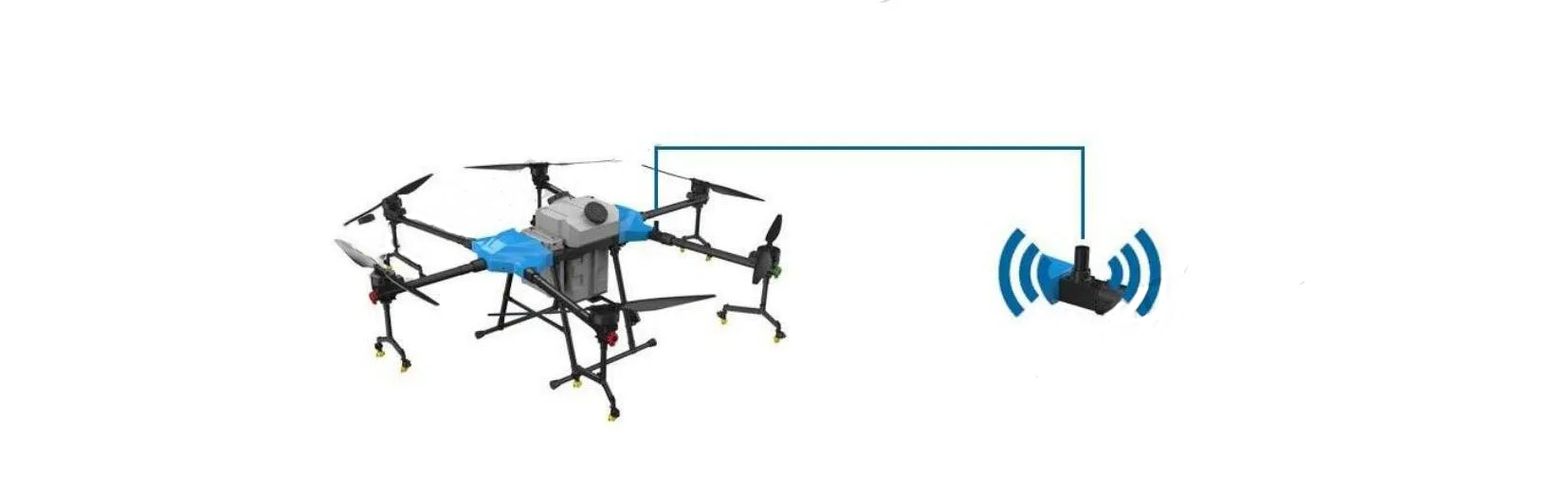

• Terrain follow & Obstacle avoidance
• Equips with obstacle avoidance radars to realize terrain follow and precise obstacle avoidance.

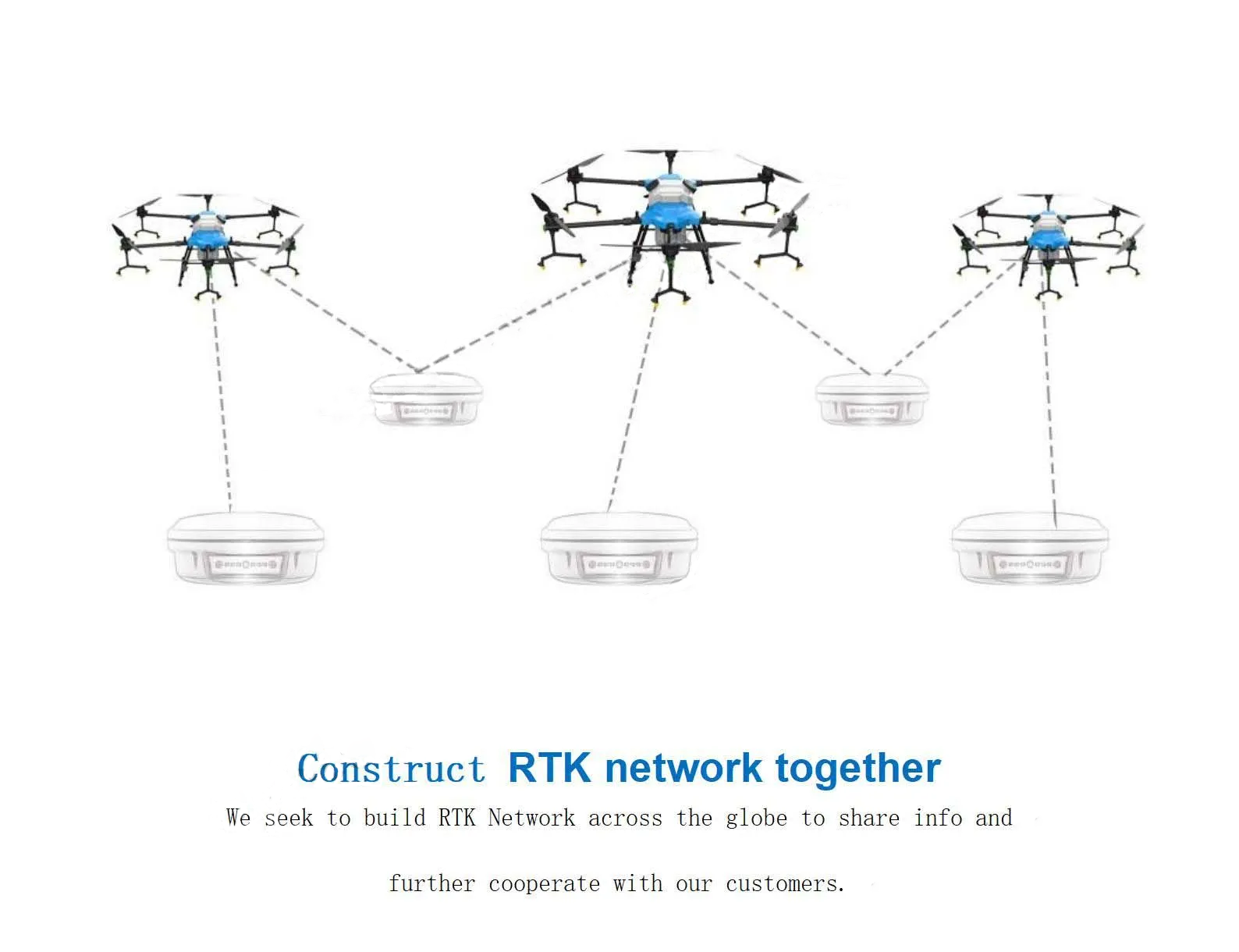

Centimeter-level RTK

C30 equips with a centimeter level RTK system to ensure a safe flight

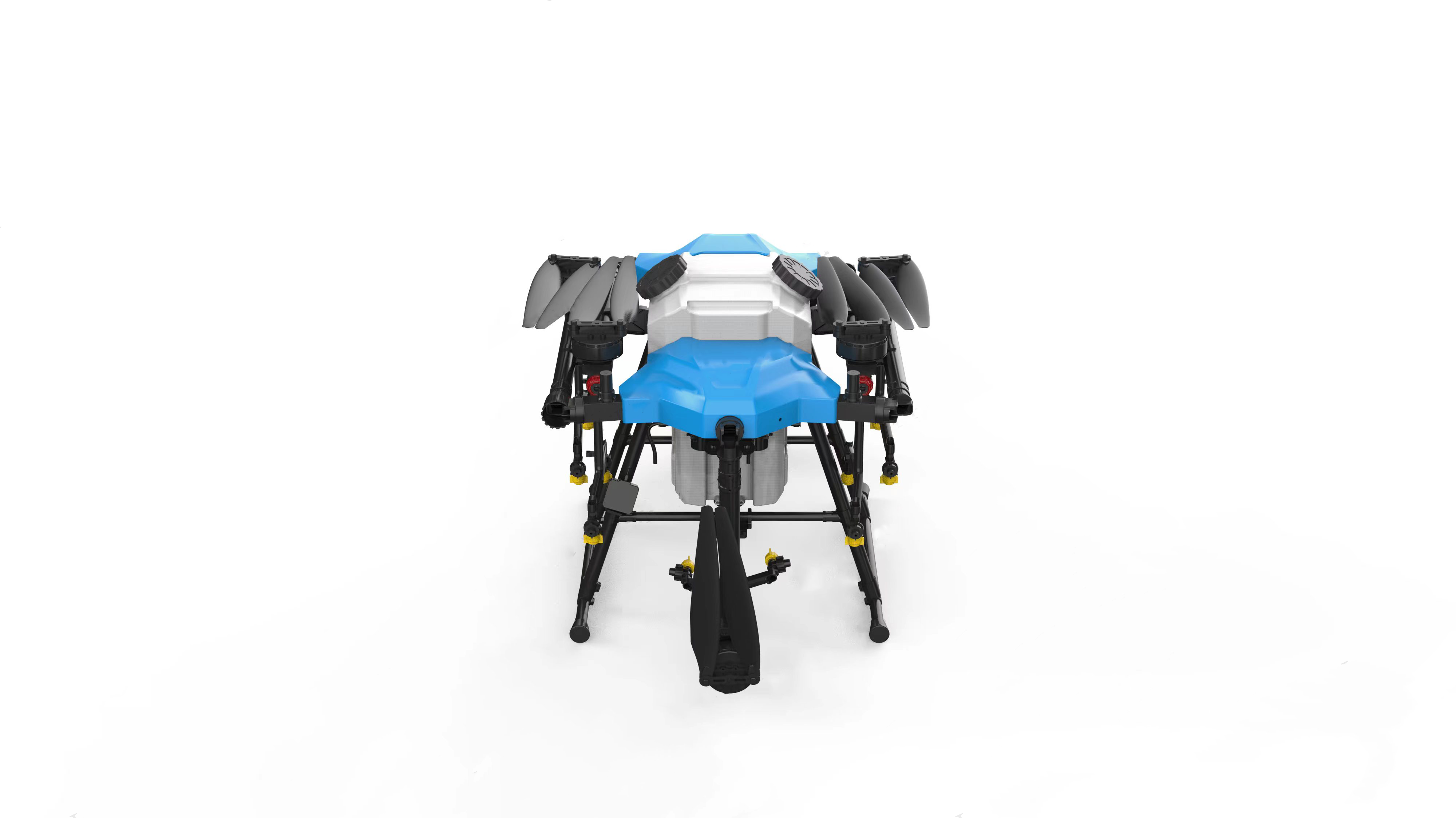

Modular Body Design

Each component is installed separately .Easy to assemble and maintain.Time-saving,labor-saving,money-saving.

8 Nozzles，evenly spray

Equipped with 8 nozzles and 4 pumps，8L/min spraying flow rate.
