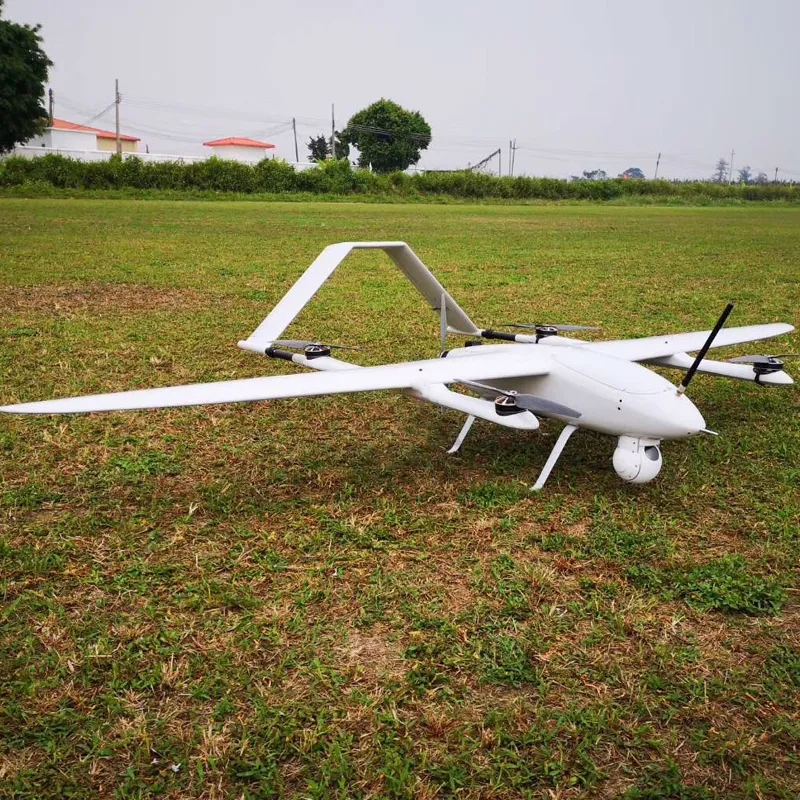

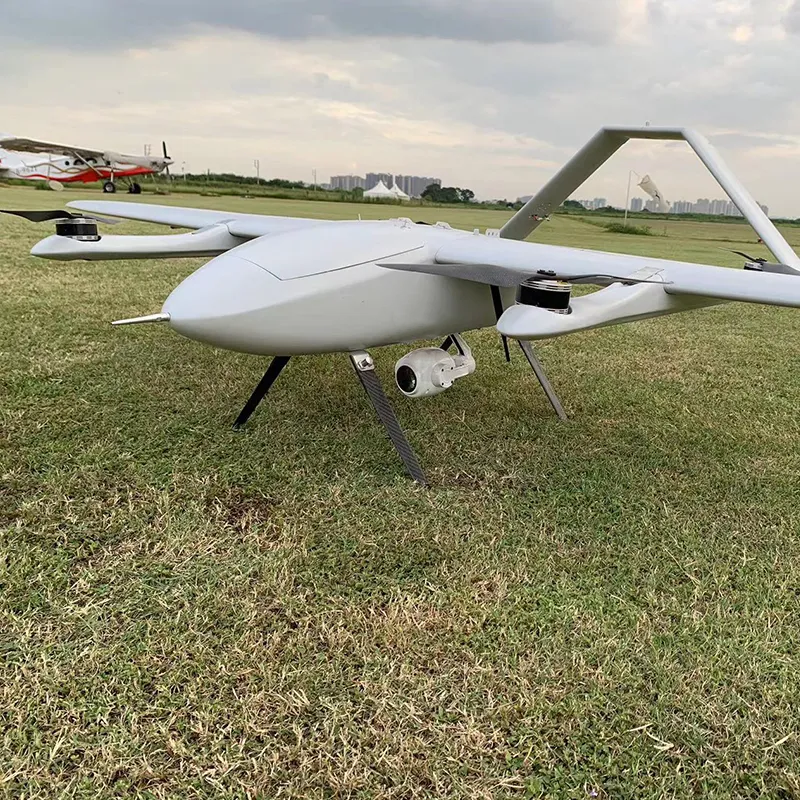

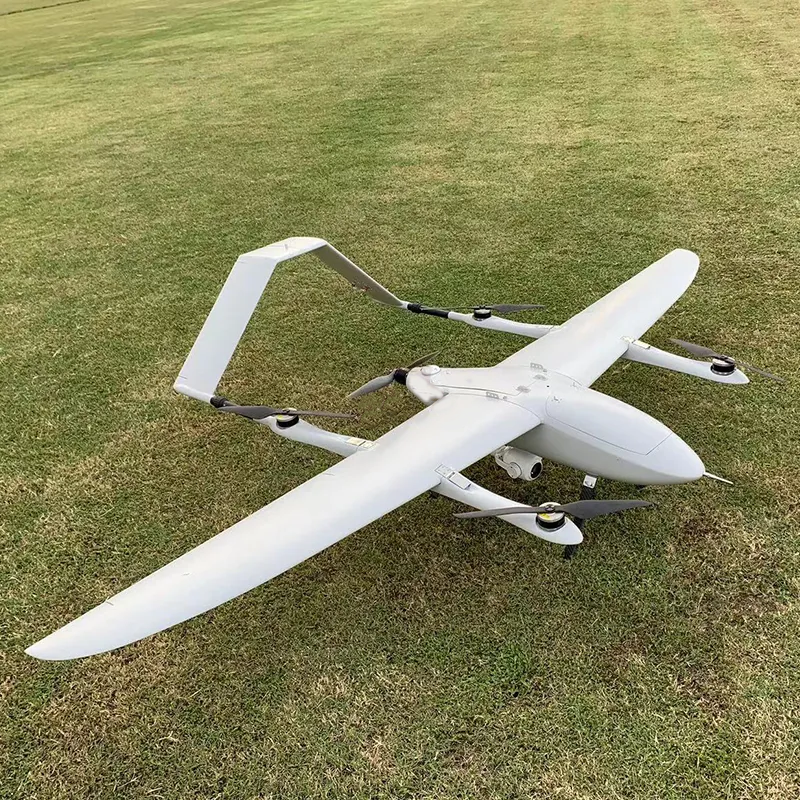

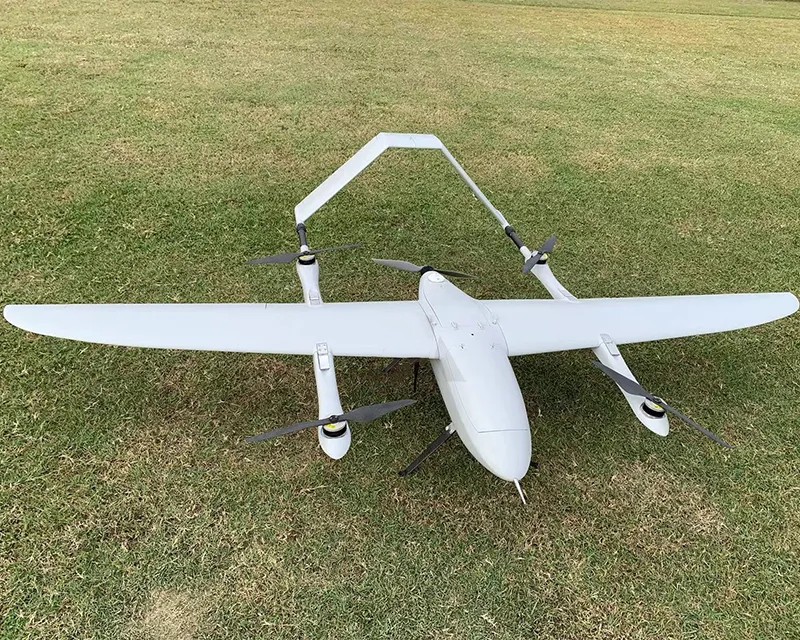

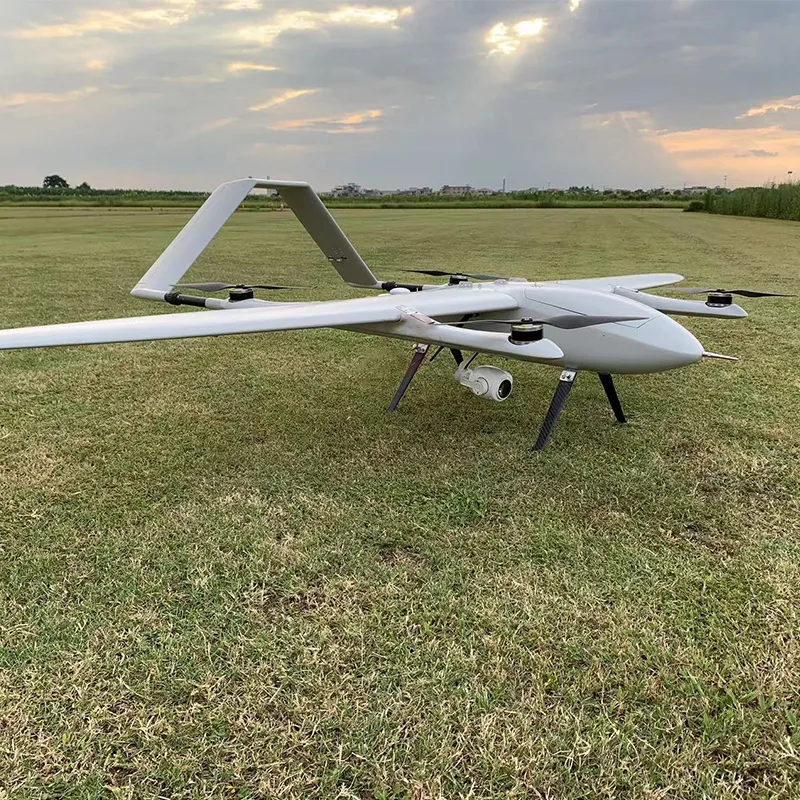

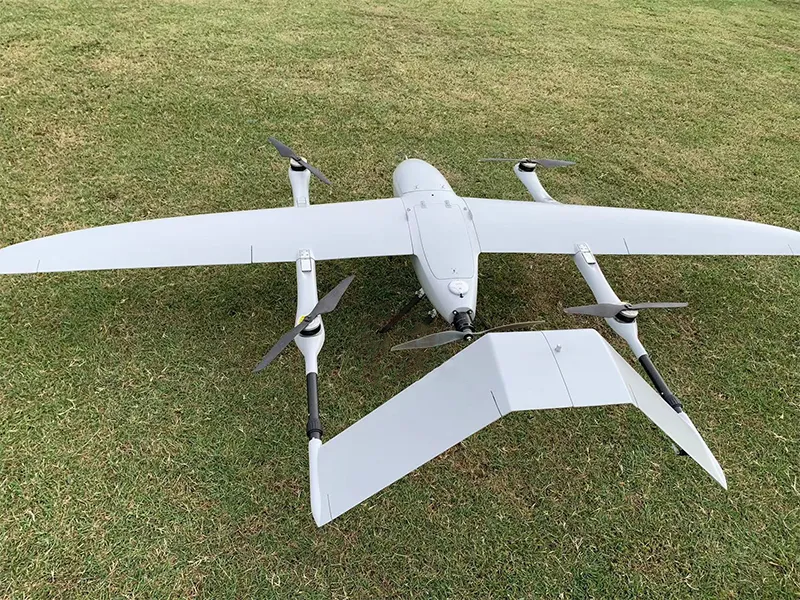

3.5 Hours Endurance Long Range Electric Powered Professional VTOL Fixed Wing UAV Drone

Product Description:

Essential details:

Place of Origin:Suzhou, China

Model Number:KYF-VT12E

Material:Full composite material

Power:Electric Powered

Function:With Camera, One Key Takeoff / Landing, APP Control, With Remote Control

image capture resolution:4K

Private Mold:Yes

Operator Skill Level:Beginner

Control Type:Remote Control

image transmission distance:＞10KM

Maximum Flight Time:3.5 Hours

Gyro:Yes

Drone Type:VTOL Fully autonomous flight

Power System:Electric Powered

Duration of flight:3.5 Hours

Cruise speed:60-100KM/H

Maximum takeoff weight:12Kg

Payload:2Kg

Wind Resistance:Grade 6

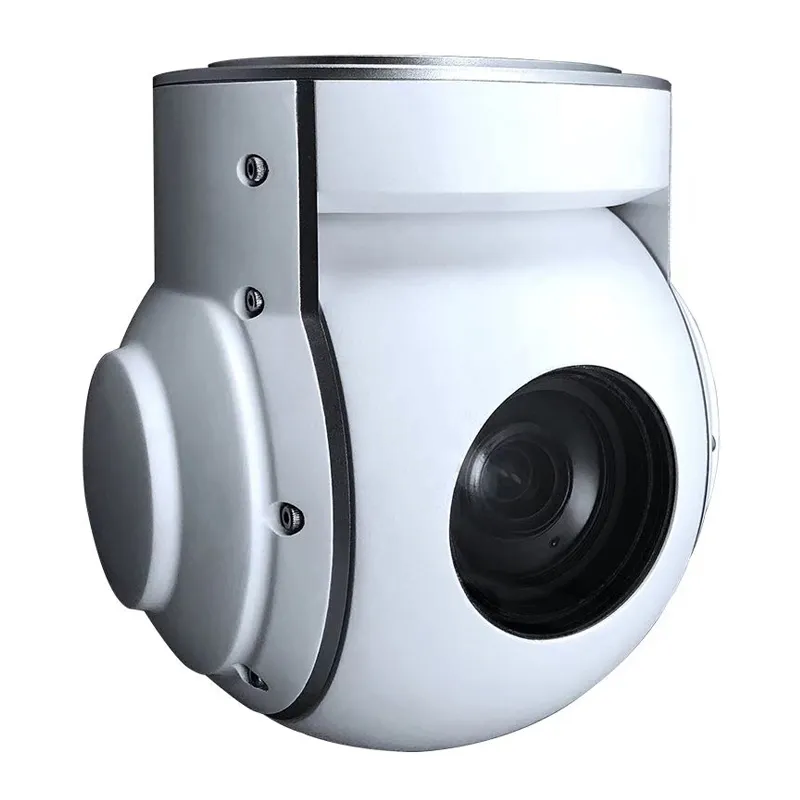

Gimbal Camera:Optional

Application:Mapping/Surveillance/Survey

Model features:

Vertical take-off and landing:Low requirements for landing and landing points, high operating efficiency.

Simple structure:Easy to operate in a short time.

Full autonomous flight:One-button take-off, safe and efficient.

High security:Double protection for emergency landing and open umbrella.

Duration of flight:3.5 Hours

Aircraft Parameters:

Cruise speed:60-100KM/H

Aircraft length:1.45M

spanWing :2.5M

Maximum takeoff weight:12KG

Payload:2KG

Wind resistance:Grade 6

Power System:Electric Powered

Body material:Full composite material

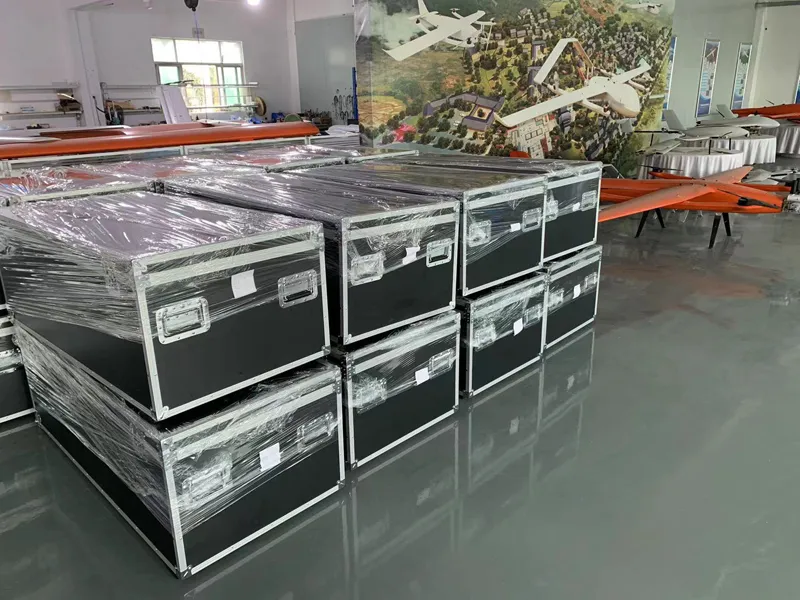

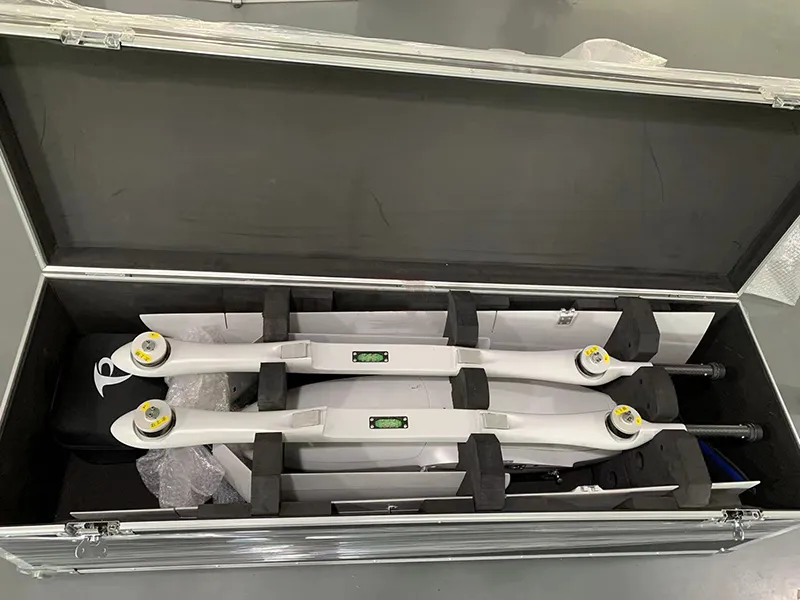

Packing:128*48*50cm, 40Kg

Autopilot performance:
full coverage of the model;
Satellite navigation
[real-time GPS/GLONASS/Galileo/B Multi-system signal reception];
attitude accuracy 0.5°, heading accuracy 1°;
centimeter-level positioning;
High precision and high dynamic motion measurement.

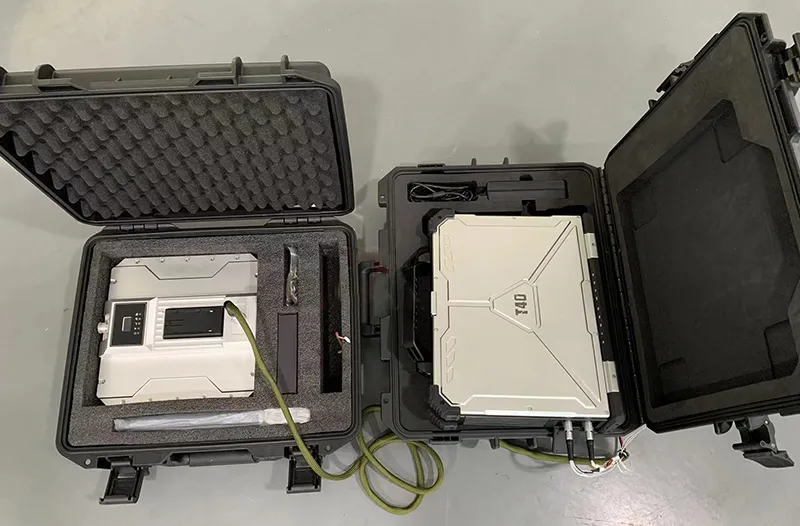

ITEM:Functions/Technical Parameters

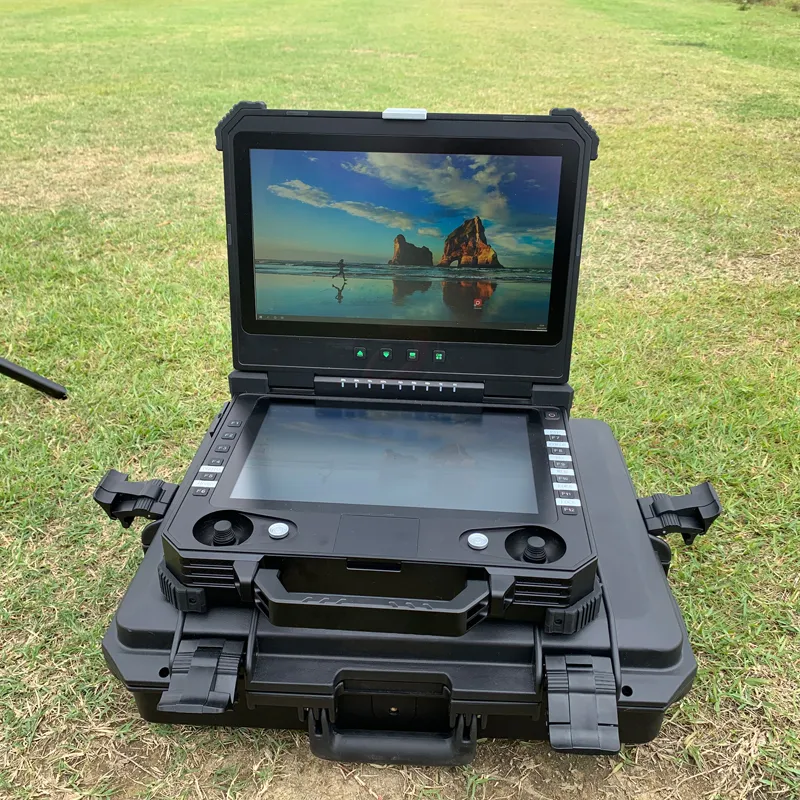

FEATURES:

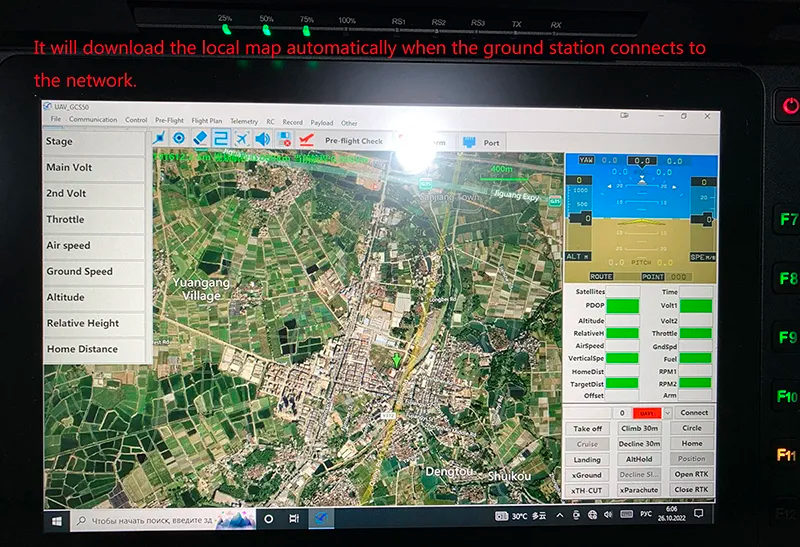

1. UAV control: parameter setting, flight check, route planning, flight data display, flight status monitoring, abnormal alarm, flight data saving and playback;

     2. Video image display: real-time display of the pod capture image:

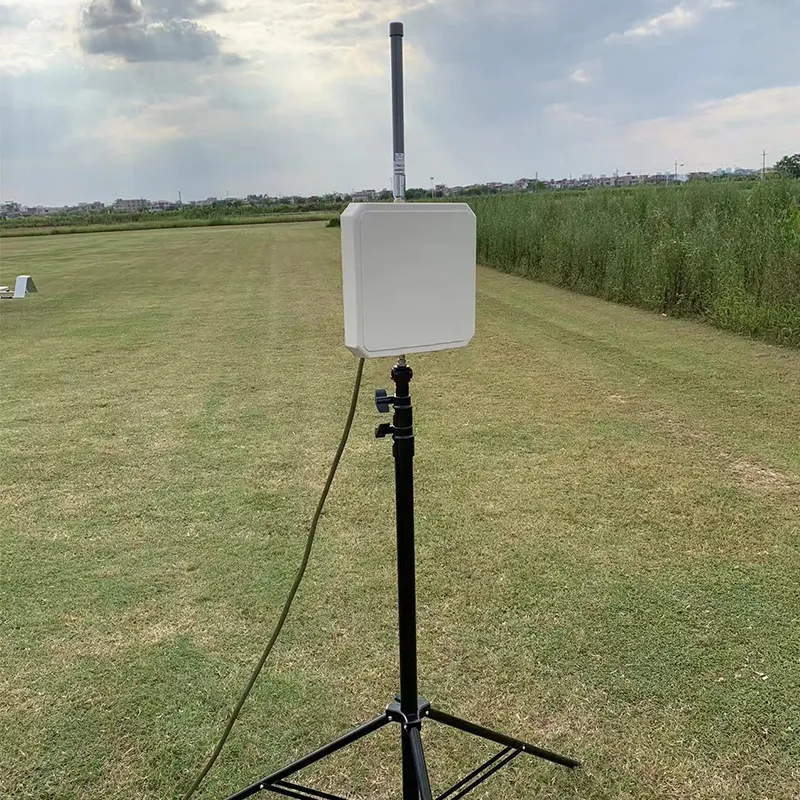

     3. Data link: integrated flight control data link, HD Image transmission link;

    4. 12V DC power supply: 12V DC power output (maximum power 24W);

    5. WiFi function: The computer can connect to the public network via WiFi;

    6. USB interface: 3 USB device connection interfaces;

    7. Image output: 1 HD HDMI video output interface;

   8. Can integrate image transmission and digital transmission links;

   9. Other functions  can be customized  according to customer requirements.

1,Function description

Support custom characters of user OSD, adaptive gate, cross

track of the target.

combining with object missing recapture algorithm, achieve stable

Build-in normalization ,cross-correlation and tracking algorithm,

cursor, trace information display.

2,Tracking performance

1)Update rate of deviation pixel 50Hz

2)Output delay of deviation pixel <15ms

3)Minimum target contrast 5%

4)the minimal signal-to-noise ratio ( SNR) 4

5)Minimum target size 16*16 pixel

6)Maximum target size 160*160 pixel

7)Tracking speed 32 pixel/frame

8)The mean square root values of pulse noise in the target

position<0.5 pixel

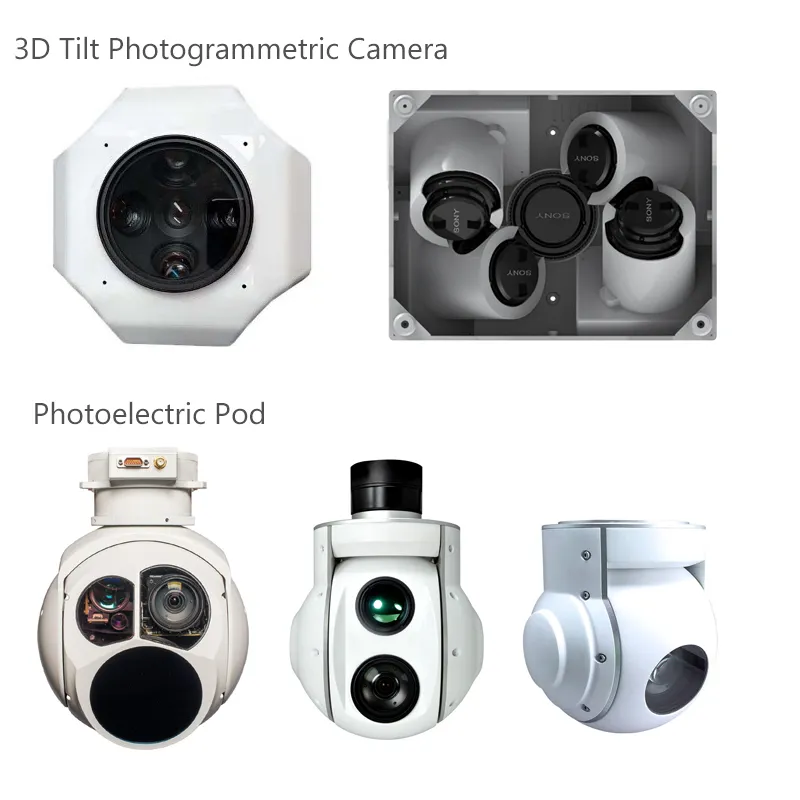

Application Payload (Optional)
